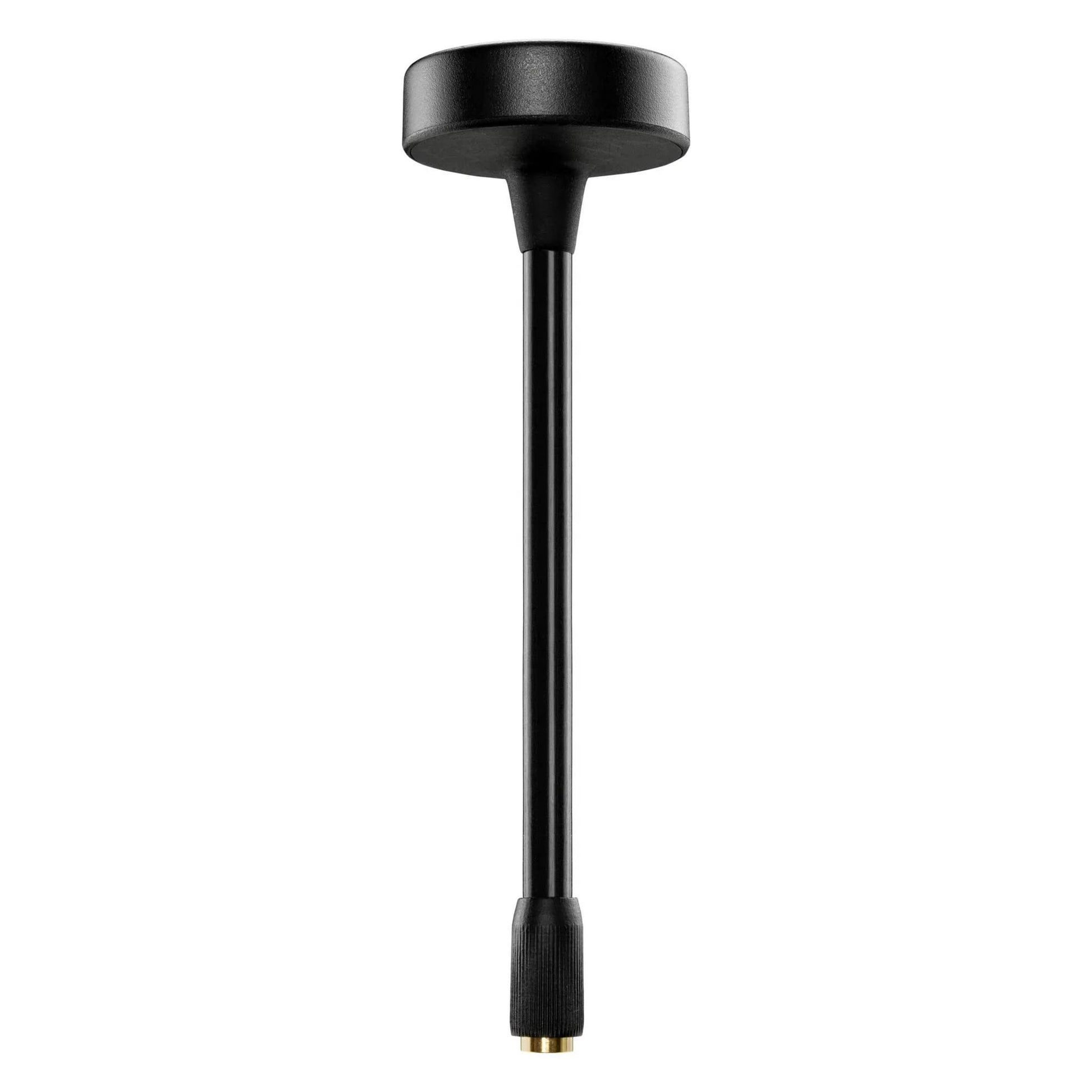

Teradek 6G Flexible H Mushroom Antenna for Bolt 6 / Bolt 4K (2dBi 4.9-7.3Ghz RP-SMA)

Brand: Teradek

Color: Black

Binding: Electronics

model number: 11-0902

Part Number: 11-0902

Details: These are designed special horizontally polarized antennas for use with the V antennas. Using a pair of H and a pair of V antennas on the TX improves the diversity characteristics of the system by combining the two perpendicular polarizations. For this H+V antenna configuration, two H antennas should be used at the TX and two at the RX as pictured. This configuration should allow for better reception and better video quality in medium-range situations and/or when the environment will create a lot of reflections for the wireless signal. The combination of H and V antenna signals achieves better diversity than V antennas alone, especially while shooting outdoors. H antennas cause the RF signal from the transmitter to propagate in a perpendicular manner compared to the vertical signal from the V antenna.

EAN: 0818264028216

Package Dimensions: 5.0 x 5.0 x 5.0 inches
