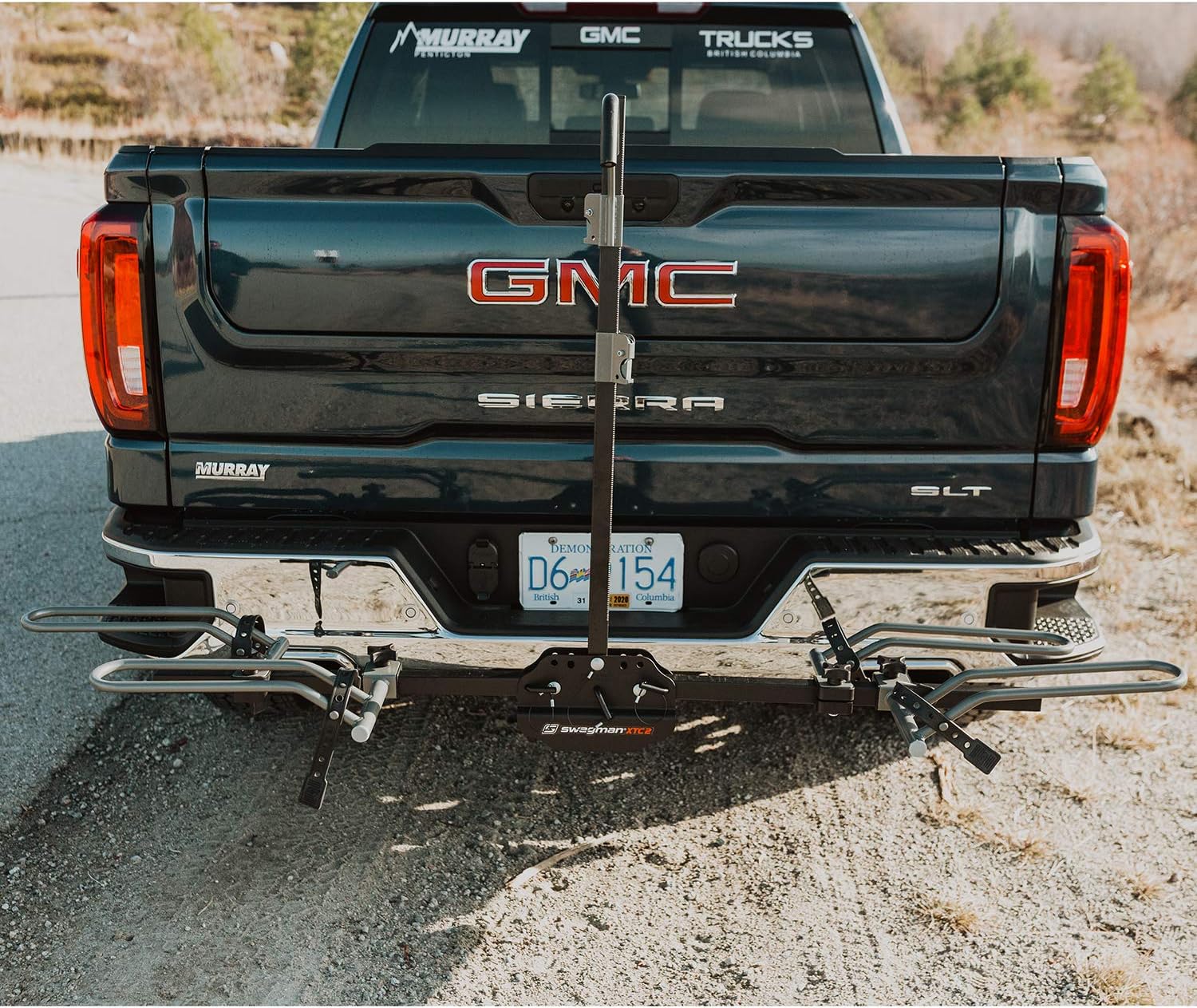

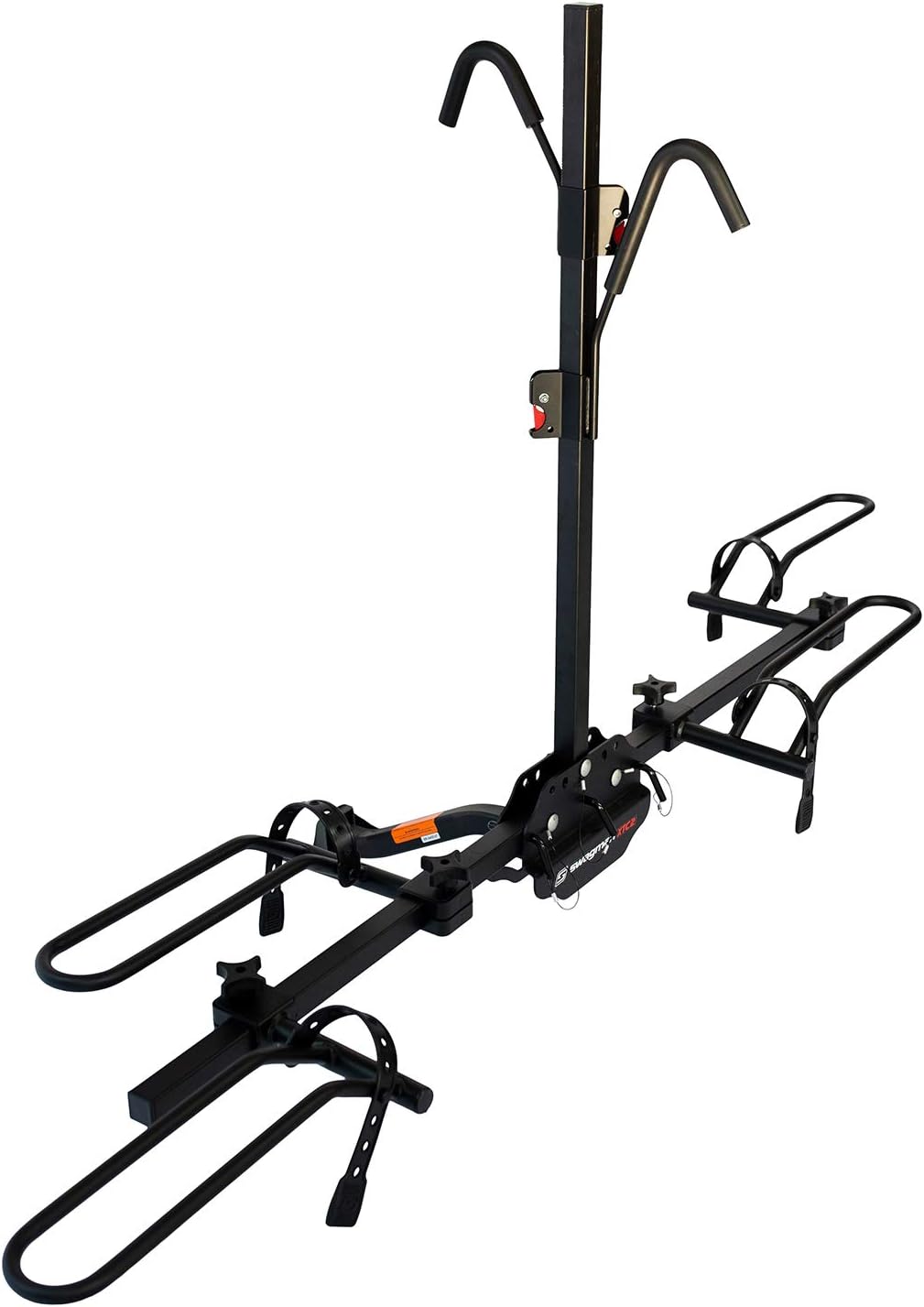

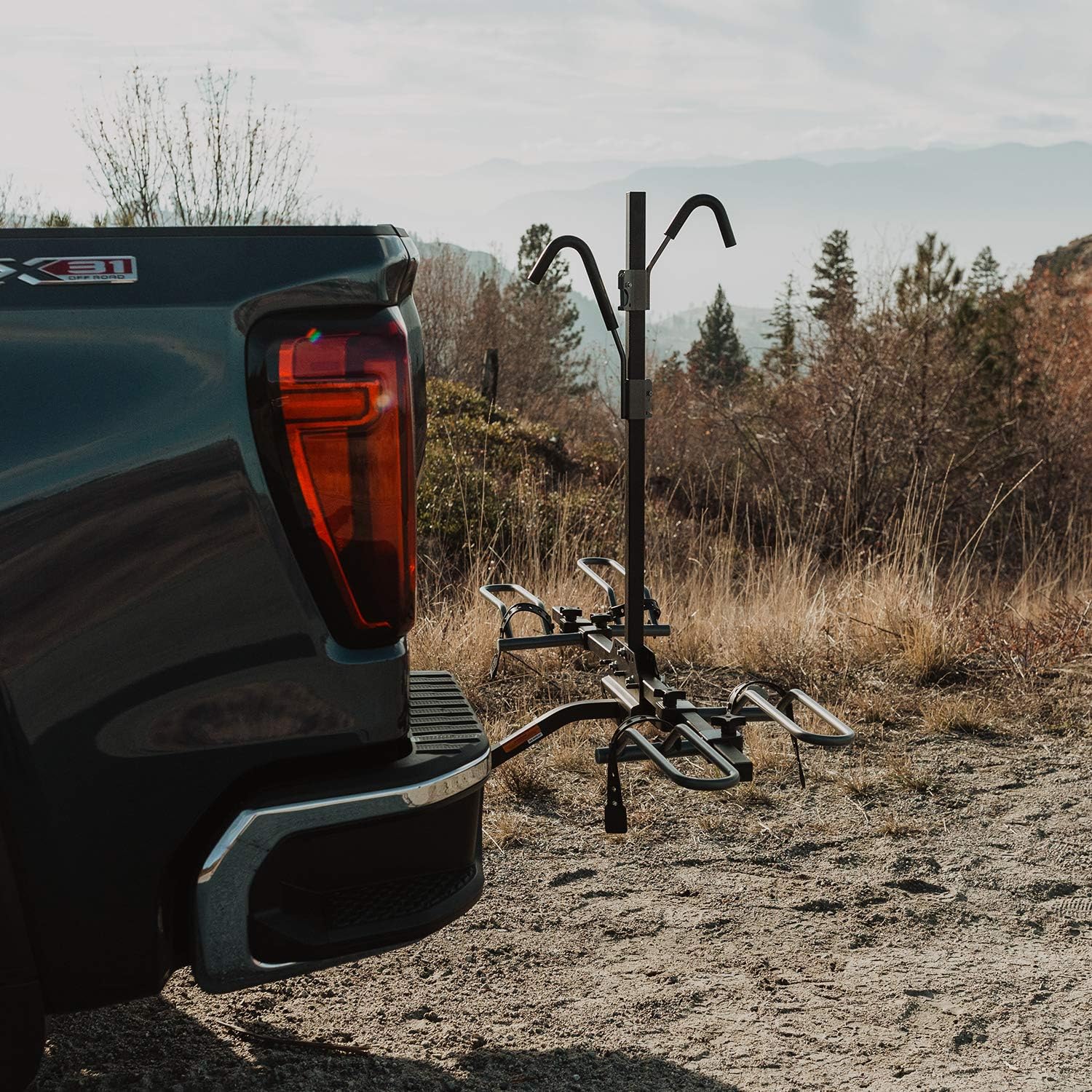

Swagman XTC2 Hitch Mount Bike Rack

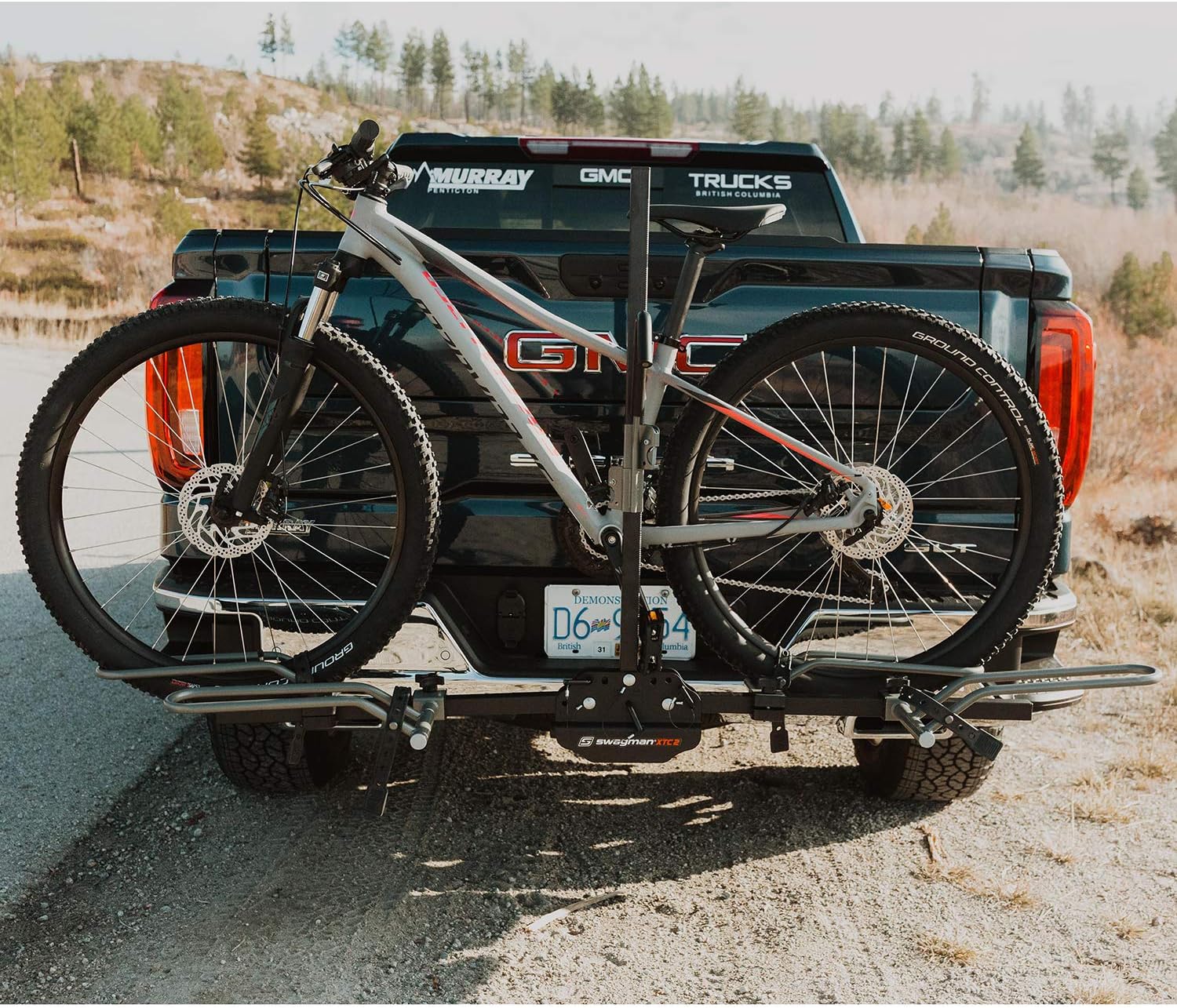

• 𝗘𝗔𝗦𝗬 𝗧𝗢 𝗔𝗦𝗦𝗘𝗠𝗕𝗟𝗘 & USE: The XTC2 hitch mount bike rack only takes a few minutes to assemble following the instructions. Once installed, simply place your bikes on the rack and start cruising to your destination
• 𝗦𝗔𝗩𝗘𝗦 𝗬𝗢𝗨 𝗦𝗧𝗢𝗥𝗔𝗚𝗘 𝗦𝗣𝗔𝗖𝗘: Rack folds easily so that you can conveniently store when you are done using it
• KEEPS YOUR BIKE STABLE: Sturdy design includes a built in anti-wobble hitch device to keep bikes in place
• 𝗩𝗘𝗥𝗦𝗔𝗧𝗜𝗟𝗘: Easily transports up to 2 bikes and is compatible with a Class 2 or higher, 1- 1/4" and 2" hitch receiver. Fits most frame sizes, shapes and style (fits 12" to 29" tire sizes). Maximum weight capacity of 35Ibs. per bike
• 𝗔𝗖𝗖𝗘𝗦𝗦𝗢𝗥𝗜𝗘𝗦 𝗦𝗢𝗟𝗗 𝗦𝗘𝗣𝗔𝗥𝗔𝗧𝗘𝗟𝗬: Fat Bike Wheel Trays (64674), 1/2" Locking Hitch Pin (64029) and 1/2" Locking Hitch Pin and Security Cable (64031)

Product Description

𝗔𝗯𝗼𝘂𝘁 𝘁𝗵𝗲 𝗫𝗧𝗖𝟮

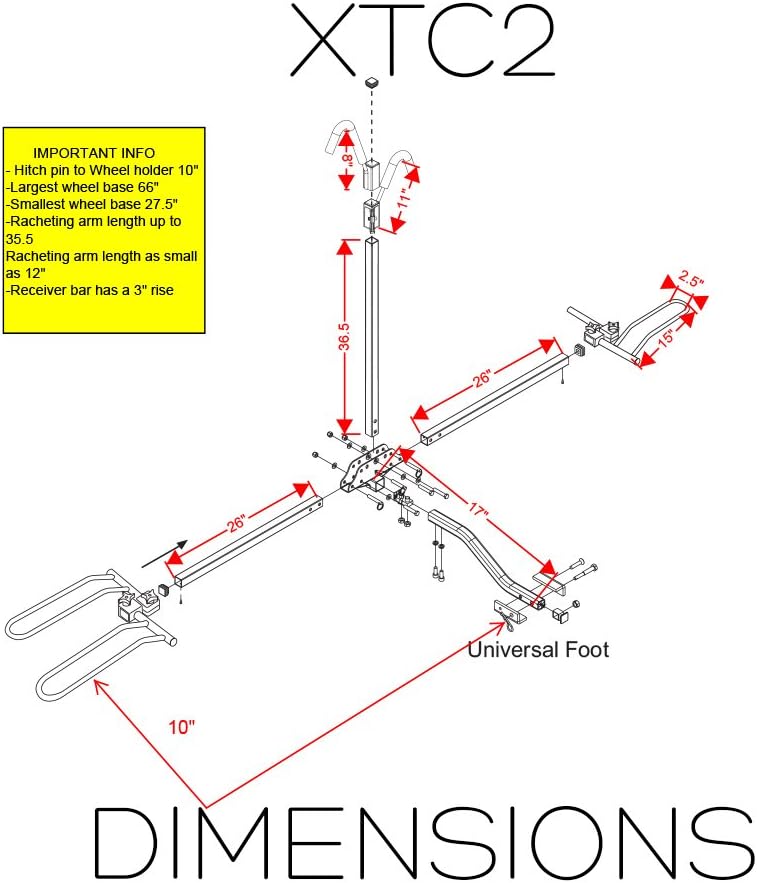

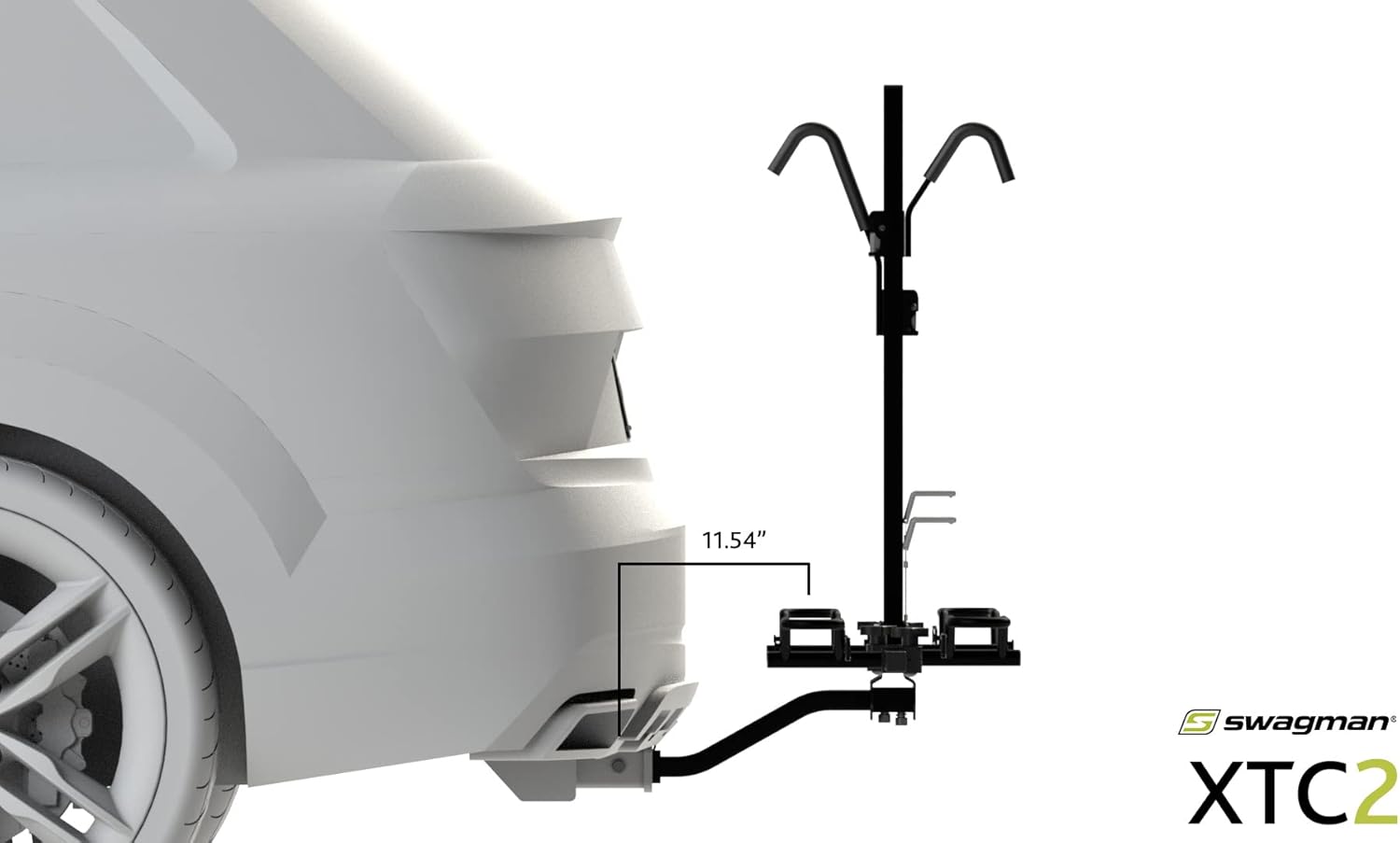

• Distance from the center of the hitch pin hole to the closest edge of the first wheel hoop measures 8" long
• Measures 15" from the center of the hitch pin hole to the upright bar
• Shank rise: 3"
• Maximum tire width: 2.5"
• Maximum bike wheel base: 66" long (center of wheel loop to center of wheel loop)
• Minimum wheel base: 27" (center of wheel loop to center of wheel loop)
• Maximum bike capacity: 70 lbs total / 35 lbs per bike
• Wheel diameter: 20" - 29"
• Includes 19mm threaded bolt pin and clip with anti-rattle to secure the rack into the trailer hitch
• Can be locked with Swagman's anti-rattle lock # 64029

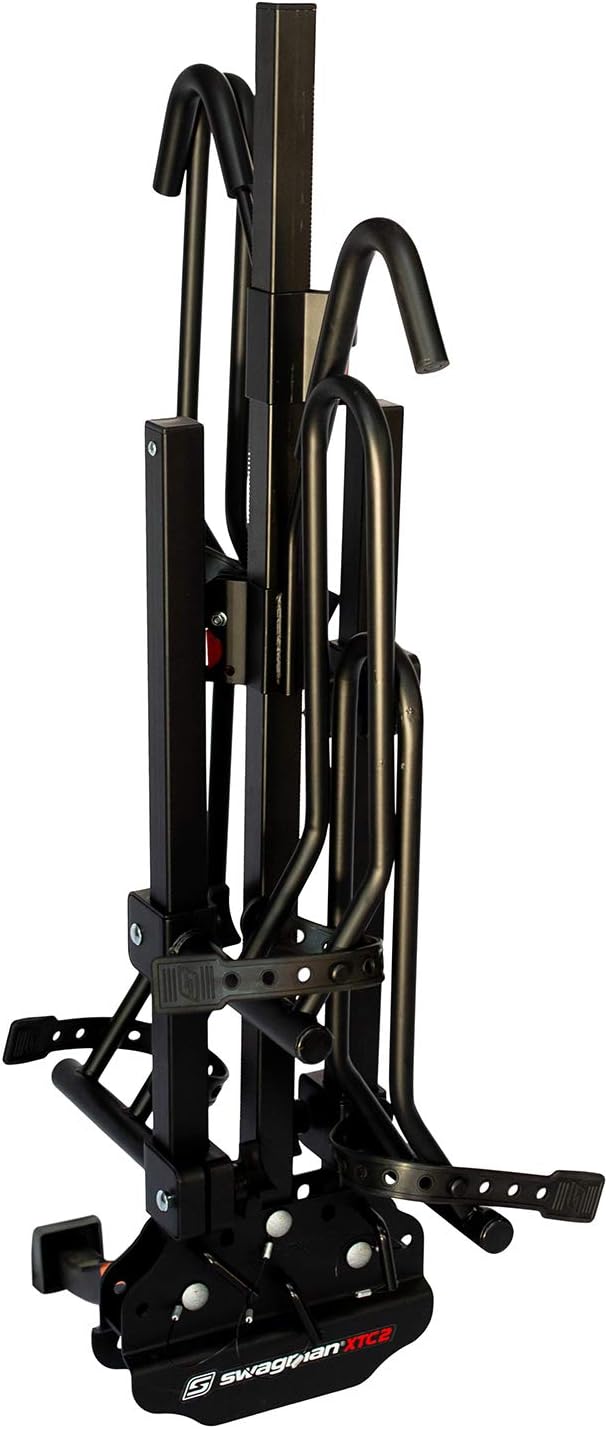

• When rack is in its folded up position it measures 42" high x 26" deep x 10" wide

𝗔𝗯𝗼𝘂𝘁 𝗦𝘄𝗮𝗴𝗺𝗮𝗻

"Ride, paddle, explore: seek your adventure"

That philosophy was the intention of founders Jim and Jan Morris who saw an opportunity to create a better way to transport your bike back in the early 90’s. Swagman was one of the first companies worldwide to design and market a hitch style bike rack. Over the years, that small bike rack company based in the Okanagan Valley of British Columbia grew to include numerous other ground breaking designs in the North American Bicycle, RV and Automobile markets.

The XTC2 is not recommended for use with carbon frames. The XTC2 does not accept padlocks. If you want to lock your bikes to the rack, please consider purchasing the Swagman Anti-Wobble Threaded Hitch Pin & Cable

Amazon.com

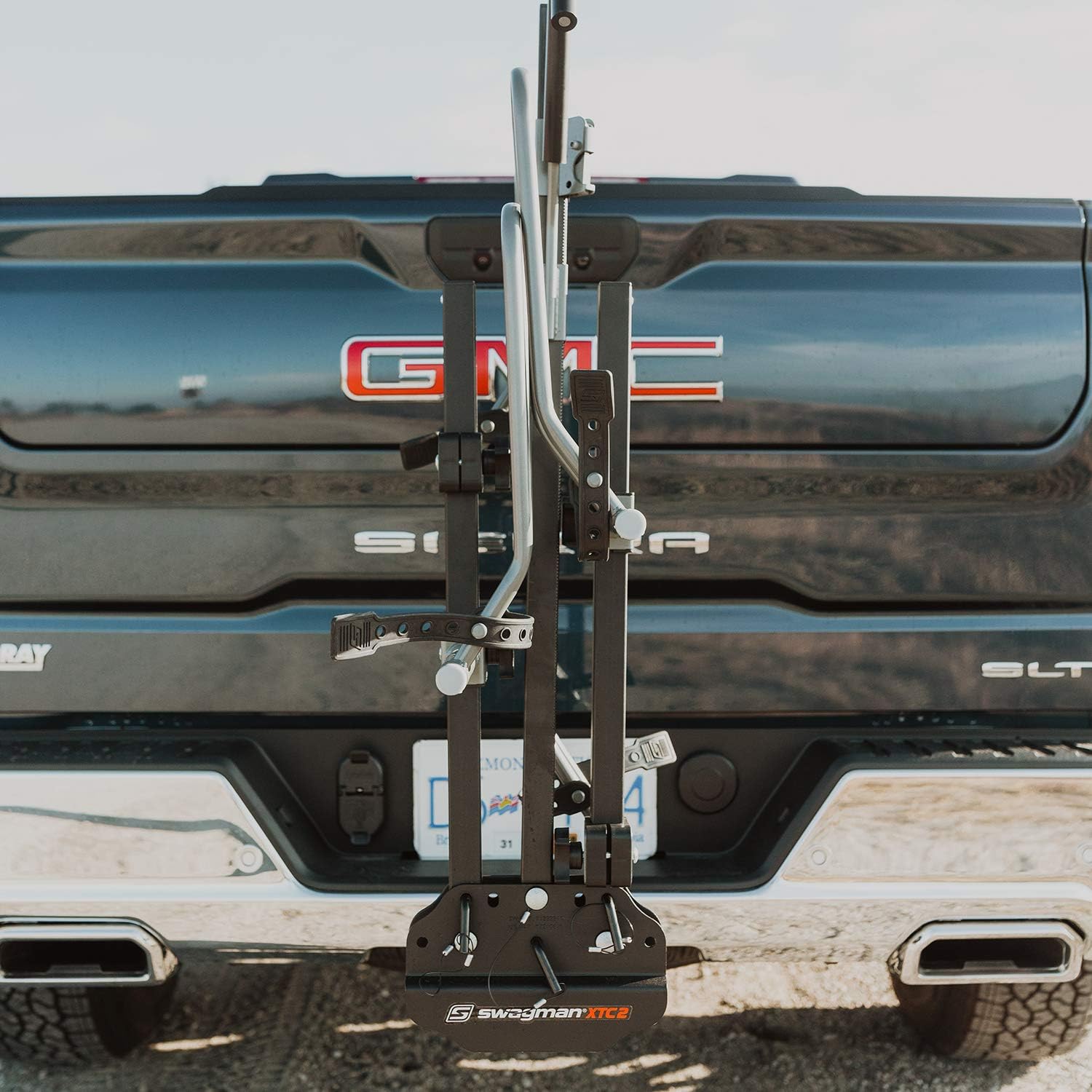

The XTC Cross-Country 2-Bike Rack is designed to make it easy to carry two bikes securely on your car's hitch with no risk of bike-on-car, or bike-on-bike damage. Thanks to a built-in anti-wobble device, the platform-style rack secures solidly to 2 or 1.25-inch hitches. To load the bikes, simply lift them into the wheel platforms, secure the wheels with the integrated wheel straps, and secure the grip arms over the frames. With push button ratcheting arms and sliding wheel platforms, the rack provides a custom fit for bikes with 20 to 29-inch wheels and can accommodate multiple frame types. The soft frame-friendly coating on the grip arms, ensures that your bikes' finishes remain unmarred. In comparison to roof mounted bike racks that generally require you to remove the bike's front wheel and hitch-mounted cradle carriers that don't support the bikes from the base, the XTC Cross-Country is easy to use and worry free. Whether your rack is fully loaded or not in use, the rack provides ready access to your car's trunk. The rack folds up for easy storage when not in use and the center arm folds down to allow access to the rear of vehicle without removing the rack. Built to last, the XTC Cross-Country 2-Bike Rack carries a limited lifetime warranty from Swagman.

Please note: an optional locking hitch pin and 10-millimeter security cable can be used with this rack and are sold separately.
