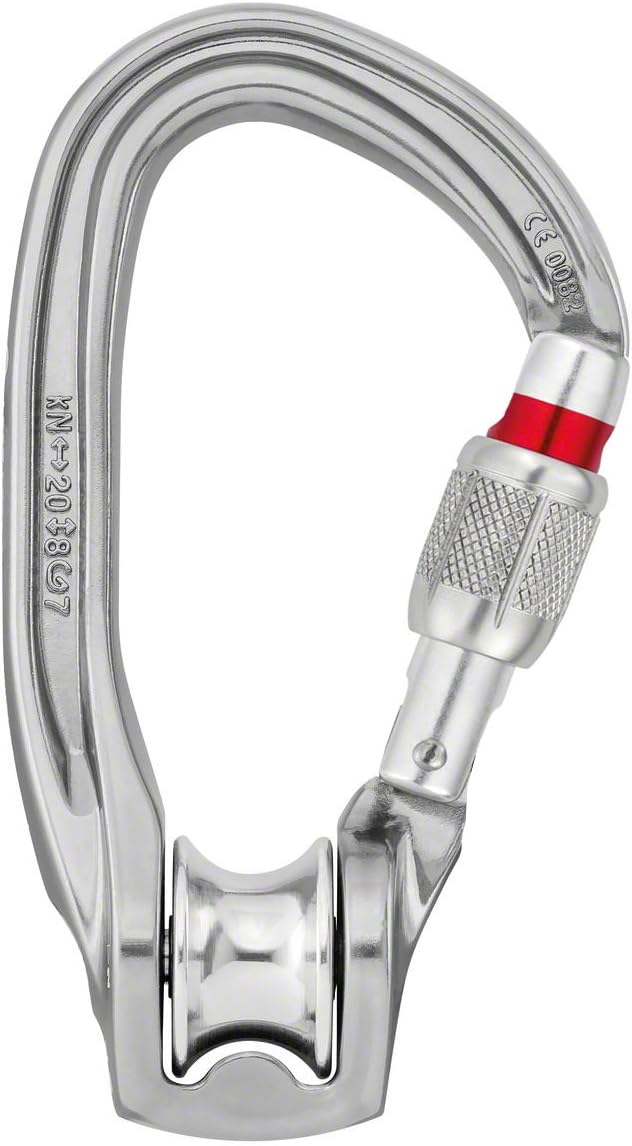

PETZL, Pro Rollclip Pulley Z, Screw-Lock

Pulley-carabiner available in A and Z models with various lock mechanisms.

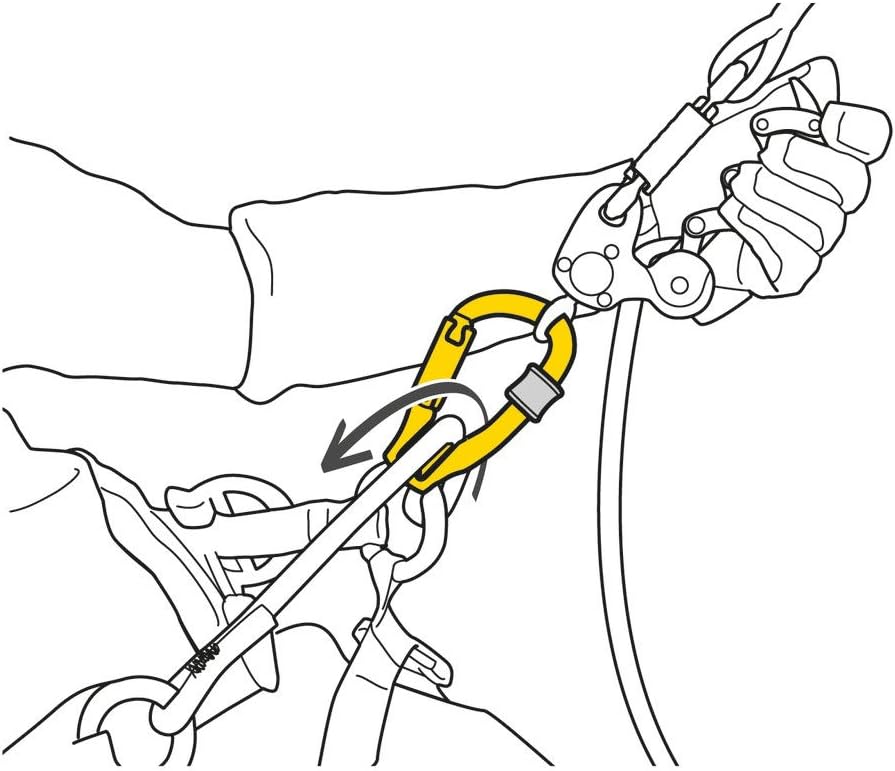

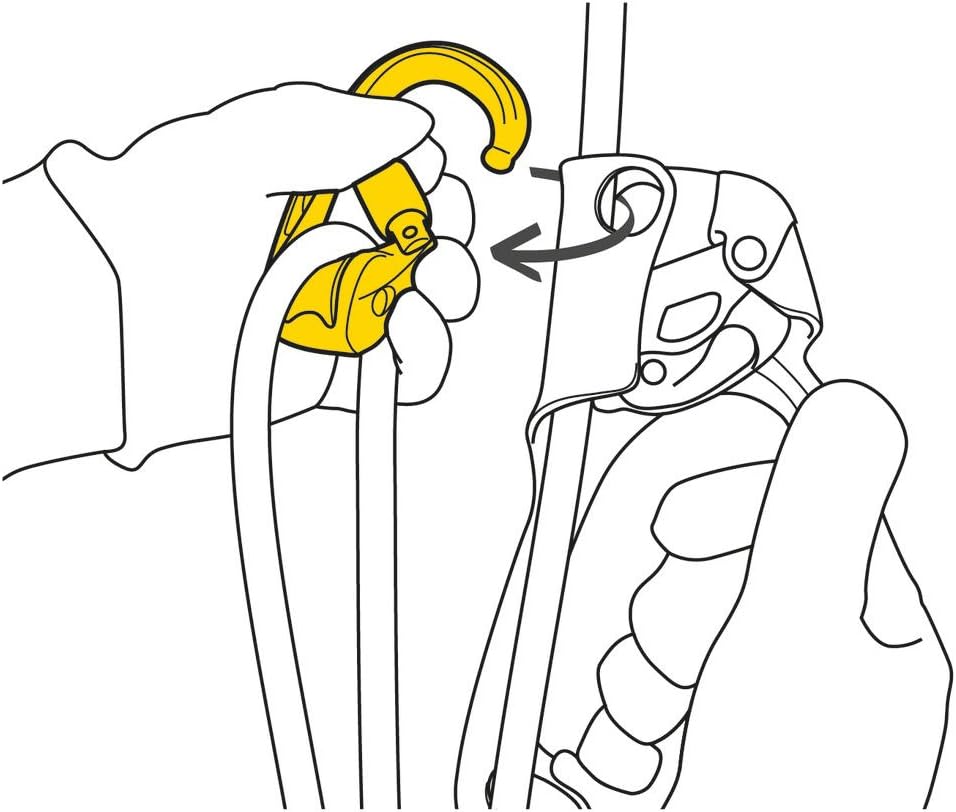

ROLLCLIP A is a pulley-carabiner with a gate opening on the pulley side that facilitates installation of the rope when the pulley is fixed to the anchor. It is available with an automatic TRIACT-LOCK locking system, or without a locking system. ROLLCLIP A may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

ROLLCLIP Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate installation on anchors and devices. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system.

• Easier handling: - sheave mounted on sealed ball bearings for excellent efficiency - gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor - may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis and to limit the risk of it flipping - Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
• H cross-section of carabiner: - ensures an improved strength-to-weight ratio - protects markings from abrasion
• Available in A and Z versions with various locking mechanisms.

• Material(s): aluminum
• Min. rope diameter: 7 mm
• Max. rope diameter: 13 mm
• Sheave diameter: 18 mm
• Maximum working load: 2 x 2 = 4 kN
• Efficiency: 85 %
• Major axis strength: 20 kN
• Minor axis strength: 8 kN
• Open gate strength: 7 kN
