Park Tool FR-5.2 Bicycle Cassette Lockring Tool

Name: Park Tool FR-5.2 Bicycle Cassette Lockring Tool
Brand: ARENAOX
Price: 29.95 USD
Availability: InStock

$29.95 USD

~~$33.99 USD~~ $29.95 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Metal
Made in USA

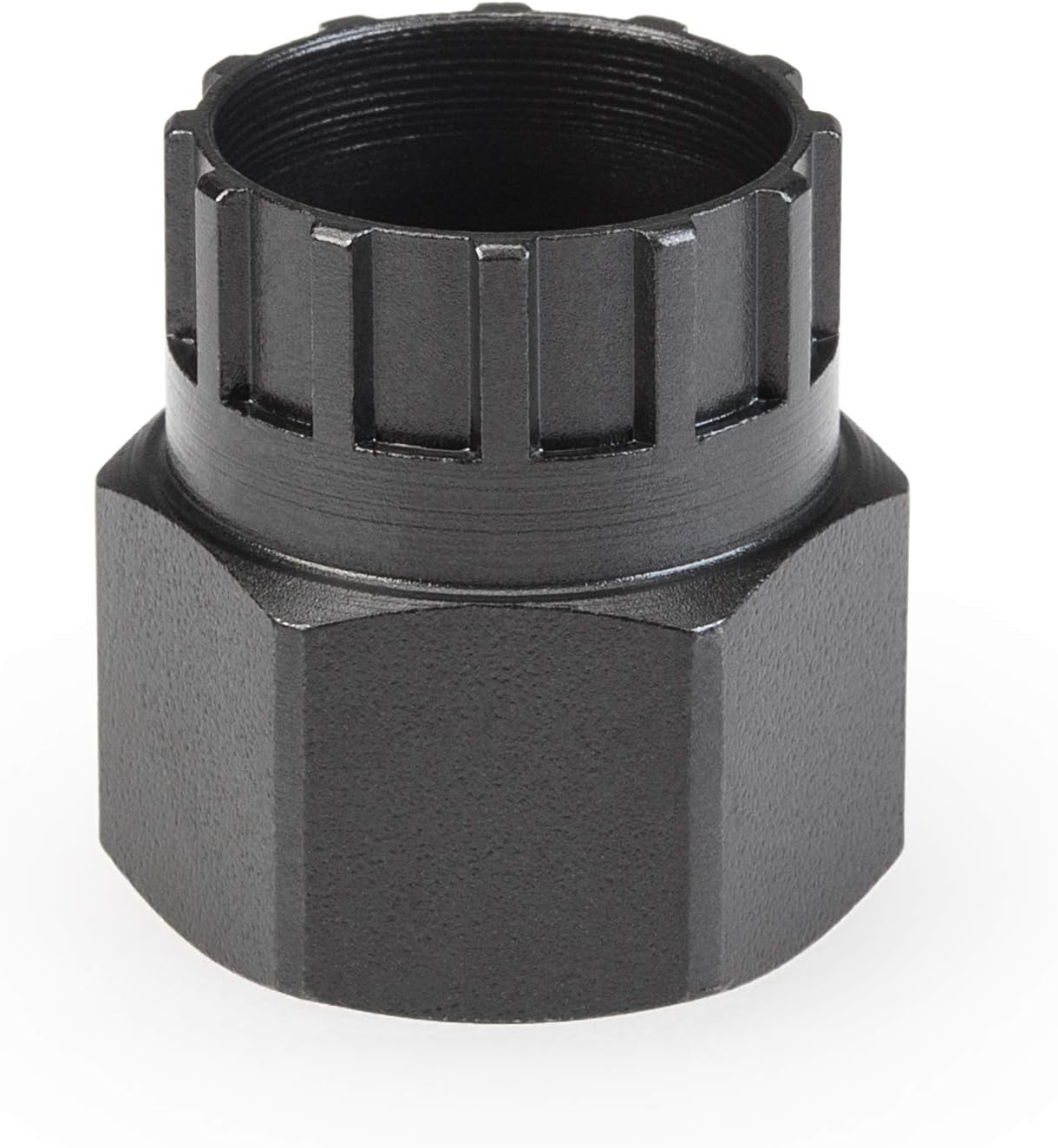

Park Tool FR-5.2 Cassette Lockring Tool
12 splines, 23.5mm diameter
Heat treated alloy tool steel
Also fits some Shimano disc brake lock rings

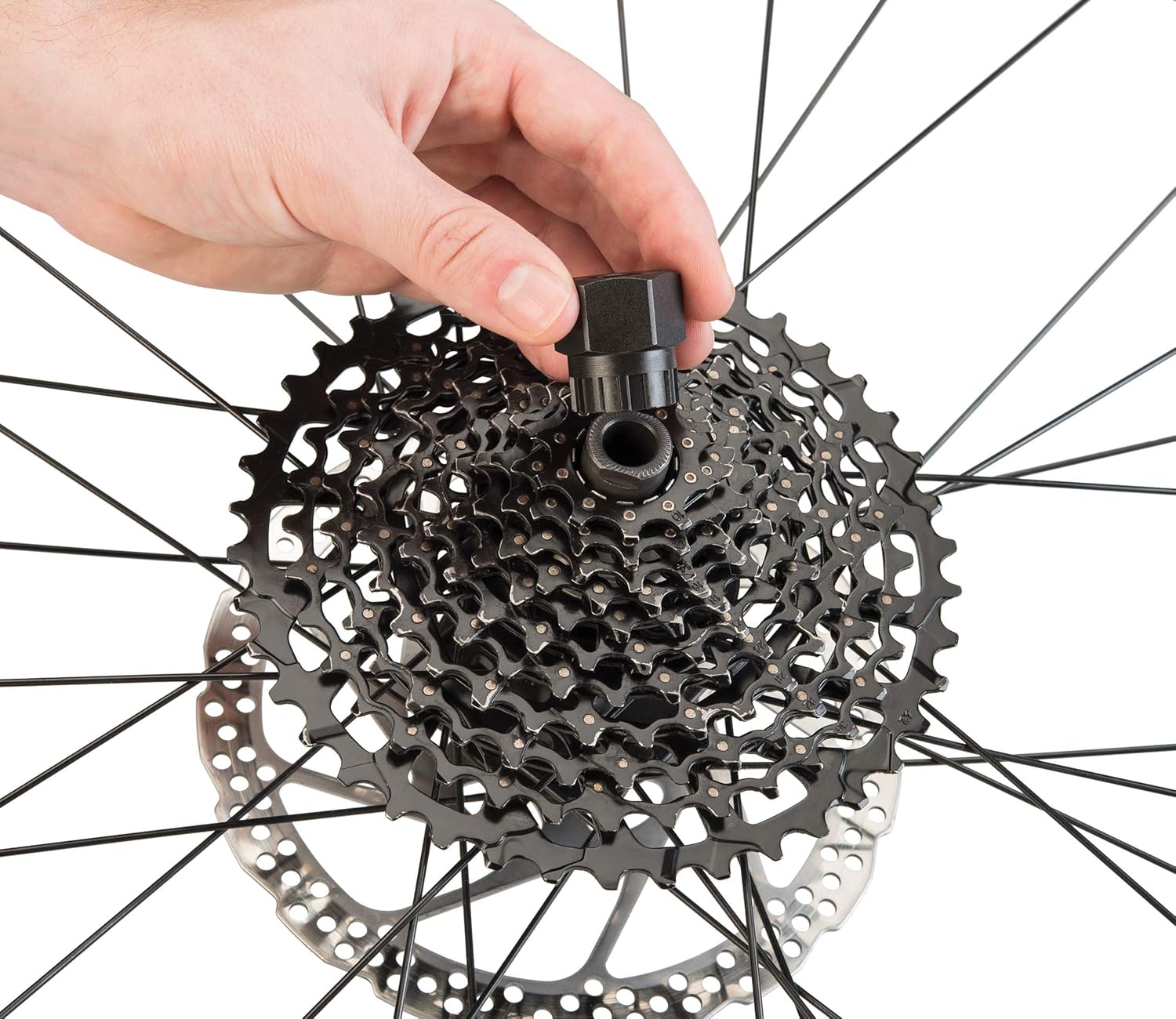

Park Tool FR-5.2 being used on a cassette lockring

Park Tool FR-5.2 Bicycle Cassette/Disc Brake Lockring Tool

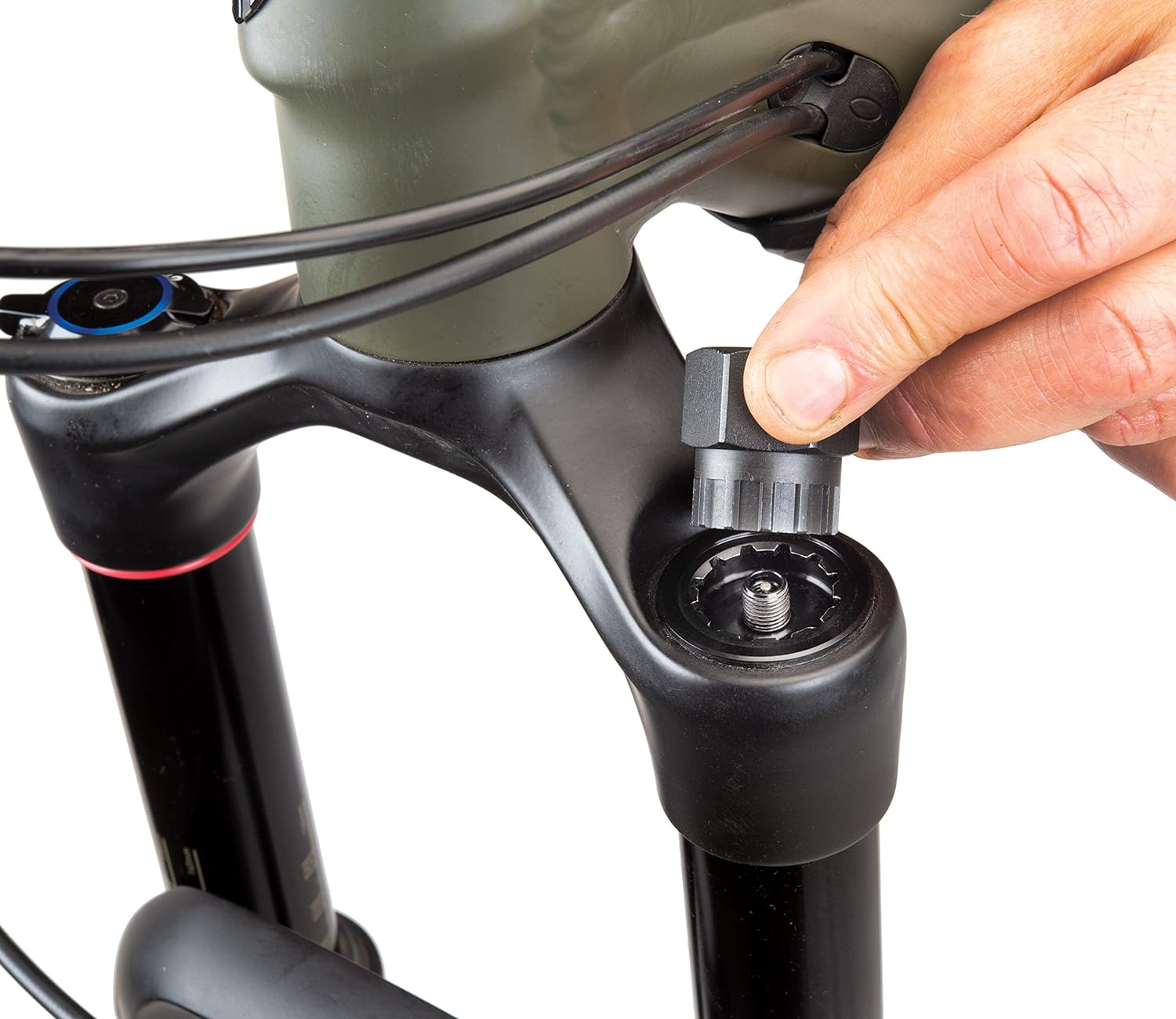

Park Tool offers a full range of tools for bicycle cassette lockring removal and installation. The FR-5.2 fits 12 spline 23.4mm diameter tool fittings - the most common tool fitting found on 7-12 speed bicycle cassette lockrings, including models made by Shimano, SRAM, SunRace, SunTour, Chris King and others. Also fits Shimano disc brake lockrings with 12 internal splines, and top caps of some Rock Shox suspension fork models including Pike, Lyrik, SID, Revelation, Reba, and Paragon. Thin wall construction allows use without removal of cones and locknuts. The 1" hexagonal base can be used in conjunction with a socket, wrench, or bench vise. Heat treated alloy tool steel construction for a lifetime of use.

The FR-5.2 has 12 splines that are approximately 23.4mm across at the widest point. Center bore for axle clearance is 12mm.

PARK TOOL: YOUR GUIDE TO THE WORLD OF CASSETTES & FREEWHEELS

CASSETTE OR FREEWHEEL?

To determine the type of rear sprocket system you have, find the tool fitting on the sprocket set. Spin the sprockets backwards. If the fitting spins with the cogs, it is a cassette system. If the tool fitting does not spin with the cogs, it is a freewheel system.

CAMPAGNOLO OR NO?

If you have a multi-speed cassette, you need one of two tools. If the cassette, derailleur, or shifter are labeled with Campagnolo, the tool for you is the BBT-5/FR-11. Otherwise, you will require a tool in our FR-5.2 line.

THE RIGHT TOOLS FOR THE JOB

In addition to the correct tool, you will also need a method of driving it (such as an adjustable wrench or 1" socket) as well as a chain whip to hold the cassette in place as you remove the lockring. Park Tool makes a full line of chain whips and wrenches for this very purpose.

Park Tool makes a full line of cassette lockring and freewheel tools to empower you to remove the rear cogs of virtually any bicycle. Here's a selection of tools similar to the FR-5.2GT:

	FR-5.2 Lockring Tool	FR-5.2G Lockring Tool w/ 5mm Guide Pin	FR-5.2GT Lockring Tool w/ 12mm Guide Pin	FR-5.2H Lockring Tool w/ Handle	BBT-5/FR-11 Lockring Tool	FR-1.3 Freewheel Remover
	Buying Options
Customer Reviews	—	1,175	1,472	359	551	3,637
Price	— no data	$12.95	$16.95	$54.95	$9.95	$9.99
Tool Type	Cassette Lockring/Disc Brake/Suspension Fork Top Cap	Cassette Lockring/Disc Brake	Cassette Lockring/Disc Brake	Cassette Lockring/Disc Brake/Suspension Fork Top Cap	Cassette Lockring/Bottom Bracket	Freewheel Tool
Tool Fitting	12 Internal Splines	12 Internal Splines	12 Internal Splines	12 Internal Splines	12 Internal Splines	12 Internal Splines
Tool Fitting Measurement	23.4mm Outer Diameter	23.4mm Outer Diameter	23.4mm Outer Diameter	23.4mm Outer Diameter	22.8mm Outer Diameter	22.6mm Outer Diameter
Typical Brands & Models	Shimano, SRAM, SunRace, SunTour, Chris King, etc. cassettes, Shimano disc brakes, Rock Shox suspension fork top caps	Shimano, SRAM, SunRace, SunTour, Chris King, etc. cassettes, Shimano disc brakes	Shimano, SRAM, SunRace, SunTour, Chris King, etc. cassettes, Shimano disc brakes	Shimano, SRAM, SunRace, SunTour, Chris King, etc. cassettes, Shimano disc brakes, Rock Shox suspension fork top caps	Campagnolo	Shimano, Sachs Aris, SunRace, DNP Epoch
Additional Features	no data	Guide pin for quick-release style hubs	Guide pin for 12mm thru-axle hubs	Built-in handle	no data	no data

TRUSTED SINCE 1963

Since our origins in the back of a bike shop in 1963, it has been Park Tool's sole mission to design and manufacture high-quality tools that empower mechanics and riders of all skill levels to service their bicycles. Just like our other 500+ tools, our cassette and freewheel tools are a product of our decades of experience and expertise in the industry, in the shop and on the trail.
