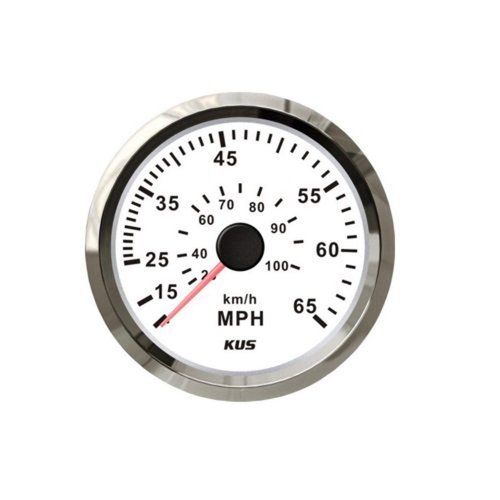

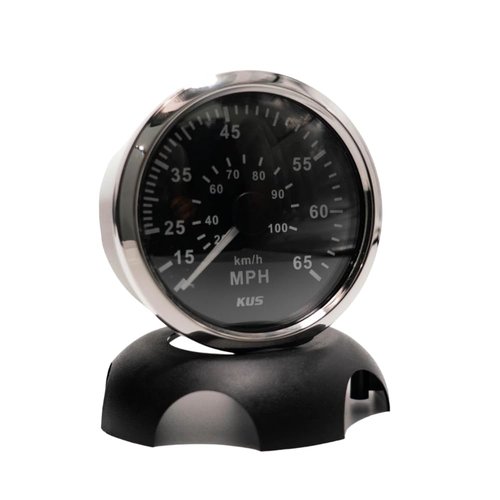

KUS CPOB-WS, 65K, Speedometer Gauge, 12V / 24V, 3 3/8" (85mm) with Backlight
KUS CPOB-WS, 65K, Speedometer Gauge, 12V / 24V, 3 3/8" (85mm) with Backlight
Couldn't load pickup availability
- Face plate: white | bezel: sues 316 | either Red or Yellow LED backlight
- Ip67 protection rating for the whole gauge
- Signal: pitot tube provides speed signals
- Mounting size: 3 1/3 inch , or 85mm
- Working voltage: 12V or 24V
KUS SPEEDOMETER GAUGE (CPOB)
Sea V Series 52mm Analog Gauges
The Speedometer gauge precisely shows the actual speed with the advantages of high precision, quick location confirmation, and short start up time. Most importantly, the Speedometer gauge is easy to setup and can be used in all vehicles, boats, and off-road vehicles.
KUS analog gauges are built to withstand the elements. The gauge bodies are IP67 rated with anti-fogging and scratch resistant lens cover; this means it can stand the harshest environment on the water, or out in the field.
The clean dial face designs are back-lit by long lasting LED lights, making it easy to read at night or under the sun’s glare.
Specifications
- Mounting Dimension: 85mm, 3 3/8″
- Protection Rating: IP67
- Input Signal: Pilot tube provides pressure signal
- Indicating Range: 0 - 55 MPH, 0 - 65 MPH
- Operating Voltage: 12V/24V
- Connector: Multi-plug socket connection
- Movement: Cross coil motor movement
FACE AND BEZEL CHOICES
Double layer reinforced anti-fogging glass, plastic or 316 stainless steel bezel with convex glass.
Bezel Options:
- White Plastic
- Black Plastic
- 316 Stainless Steel
Face Plate Options:
- Black
- White
BACKLIGHT OPTIONS
Back-lit by long lasting LED lights, easy to read at night or under the sun’s glare.
Color Options:
- Red
- Yellow
EASY INSTALLATION
Easy installation with multi-plug socket connection design. Instructions are in the back.
Installation:
- Red - Battery (+)
- Blue - Battery (-)
- Black - Sensor
- Orange - Red Light
- Yellow - Yellow Light
*For 24V, please use included drop resistor
