GM CLIMBING Haul Kit for 5:1 Mechanical Advantage Pulley Hauling Tensioning Load Releasing System Block and Tackle
GM CLIMBING Haul Kit for 5:1 Mechanical Advantage Pulley Hauling Tensioning Load Releasing System Block and Tackle
Couldn't load pickup availability
- Micro Haul Kit contains: 2 x 40 kN Micro Double Pulley, 2 x Screw Lock Oval Carabiner, 1 x 16 mm Nylon Sling 48 in, 1 x 8 mm Prusik Loop 18 in.
- Build 5:1 Mechanical Advantage System with this Micro Haul Kit, offering more than 100 rigging solutions, including pick-offs, hauling heavy loads, tensioning line systems, load releasing, rescuing stranded cars or boats, personal escape, crevasse rescue, and more. Provides reliable progress capture with 8mm Prusik loop. Delivers high-efficiency performance with sealed ball bearing pulleys. Configure a rigging system that is straightforward, efficient, compact, and multi-purpose.
- Micro Double Pulleys feature flat bottom on the side plates optimized for Prusik minding. Paired with a bound Prusik loop, they create progress capture to support a safe and controlled hauling system. Lock the load in place when tension is released, while allowing the passage of the main rope when tension is applied.
- Make a compact kit that takes up minimal space and can be easily tucked anywhere, gear bag, car trunk, or bike rack. Replace bulky block-and-tackle sets or heavy winches to pack efficiently and travel light. Streamline rigging for instant mechanical advantage anytime extra force is needed.
- Micro Double Pulley is made to withstand a high strength of 40kN, CE and UIAA certified, and compliant with safety standards to ensure safe use and high-performance in demanding applications, across mountaineering, climbing, rescue, rappelling backups, tensioning systems including slacklines, back-ties, fixed ropes, or Tyrolean traverses.
- Compatible with ropes of 8-12 mm. With the moving side plates, there's no need to thread the rope through the pulleys from the far end. Simply rotate the side plates to expose the sheave wheels, allowing for quick rope installation and removal. Time-saving, particularly when modifying pulley configurations. The side plates close flush at the top, forming a single-point connection that offers universal compatibility with carabiners.

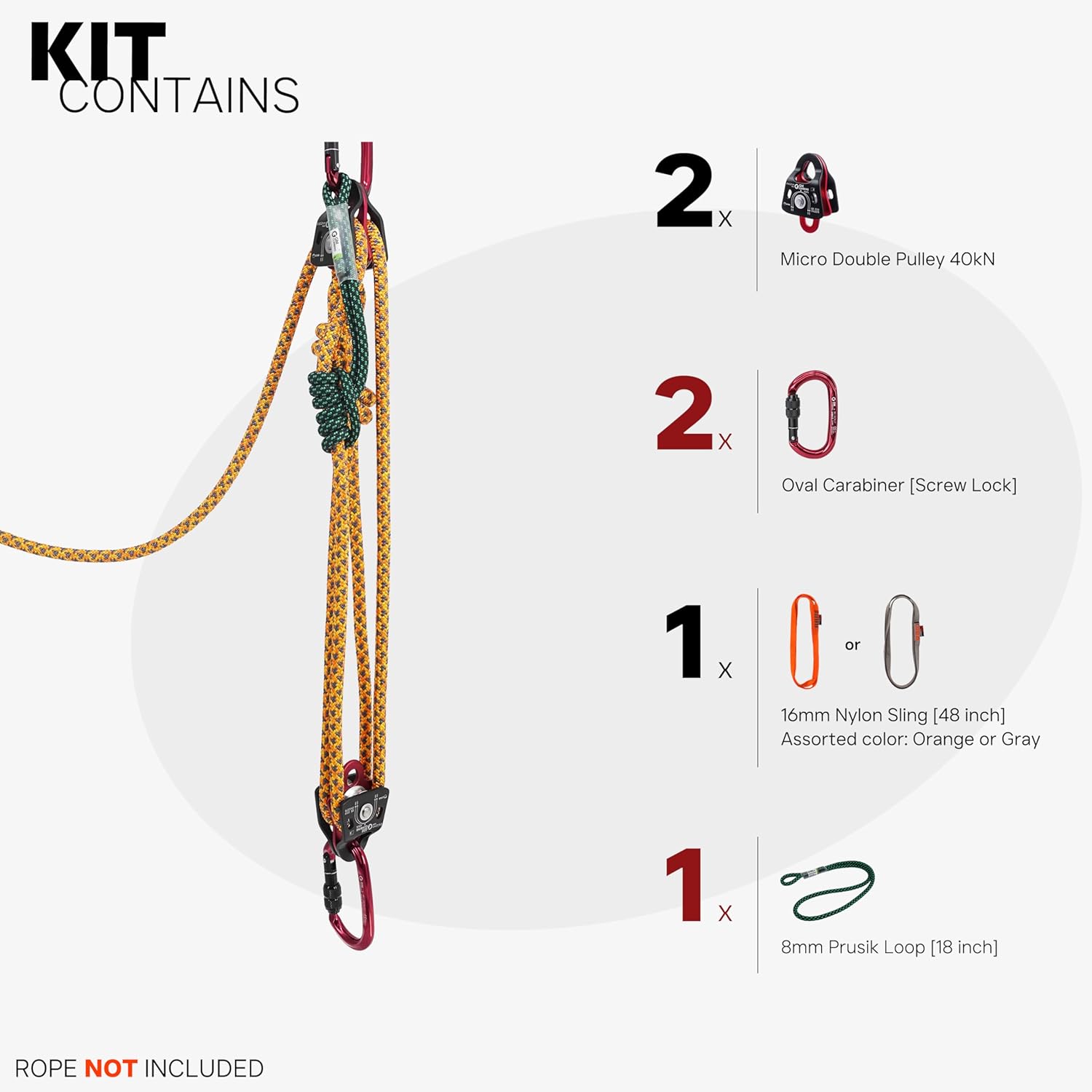

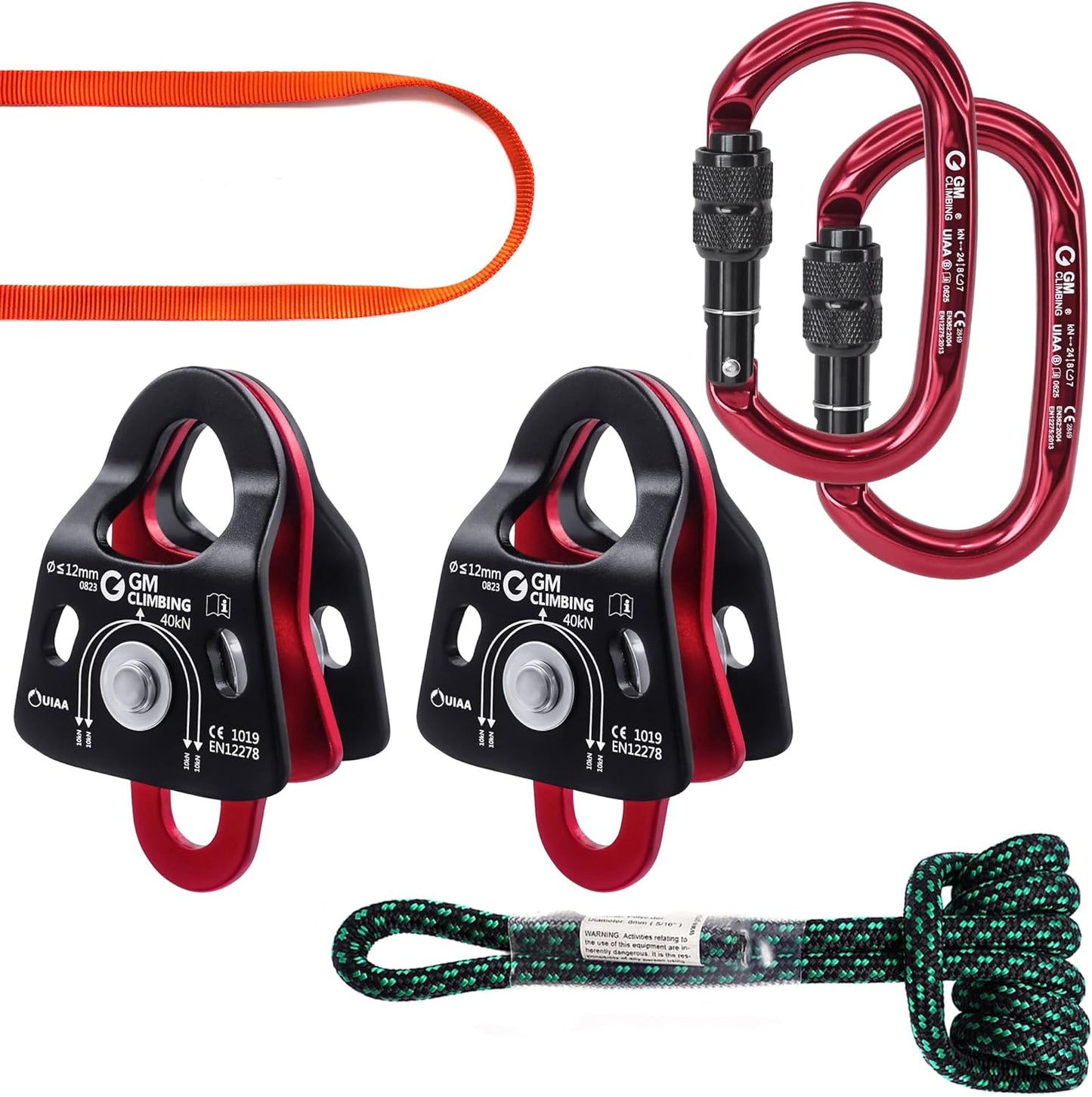

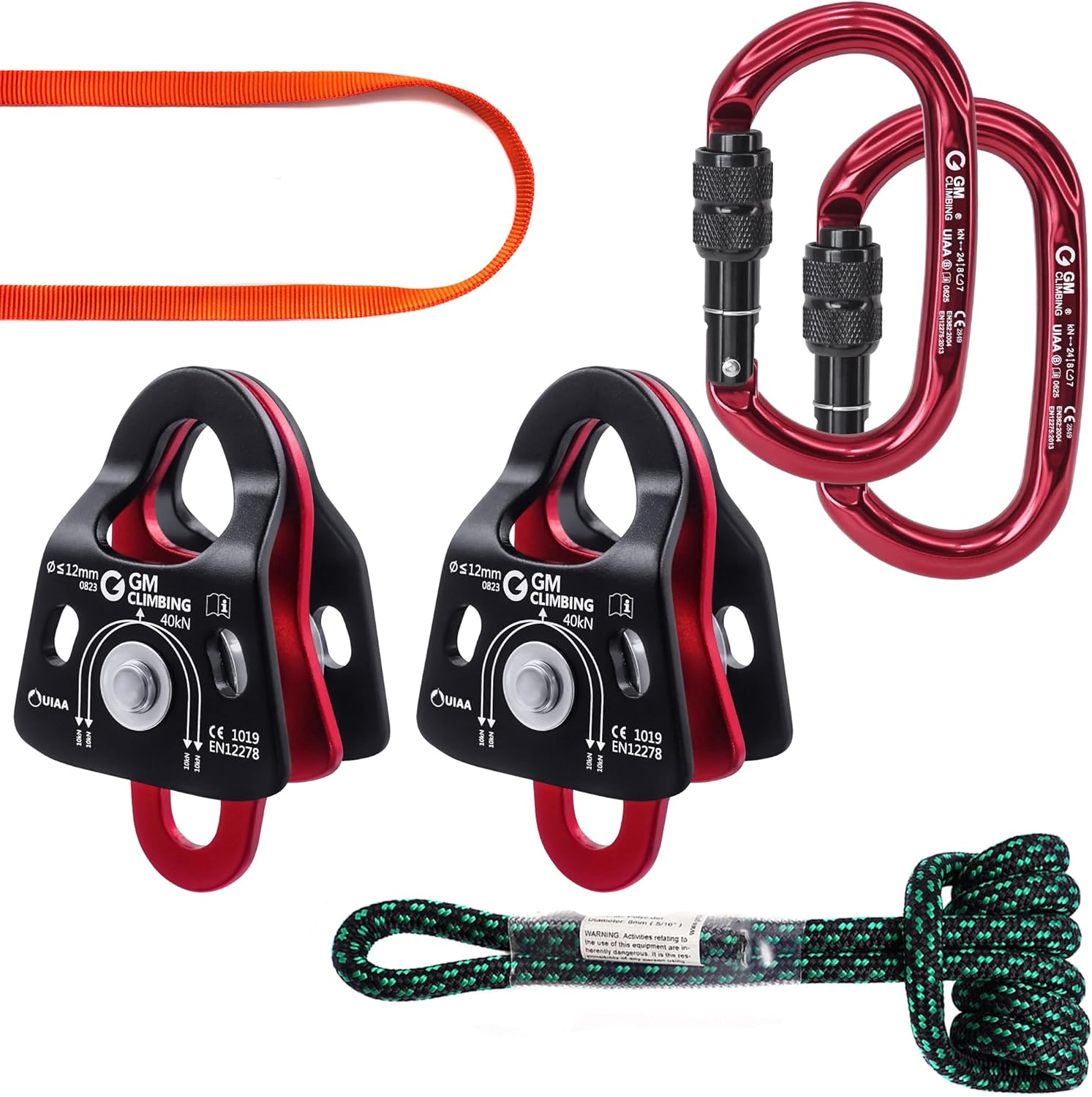

KIT CONTAINS
- 2 x 40 kN Micro Double Pulley
- 2 x Screw Lock Oval Carabiner
- 1 x 8 mm Prusik Loop 18 in
- 1 x 16 mm Nylon Sling 48 in, assorted color: Orange or Gray
TECH SPECS FOR COMPONENTS

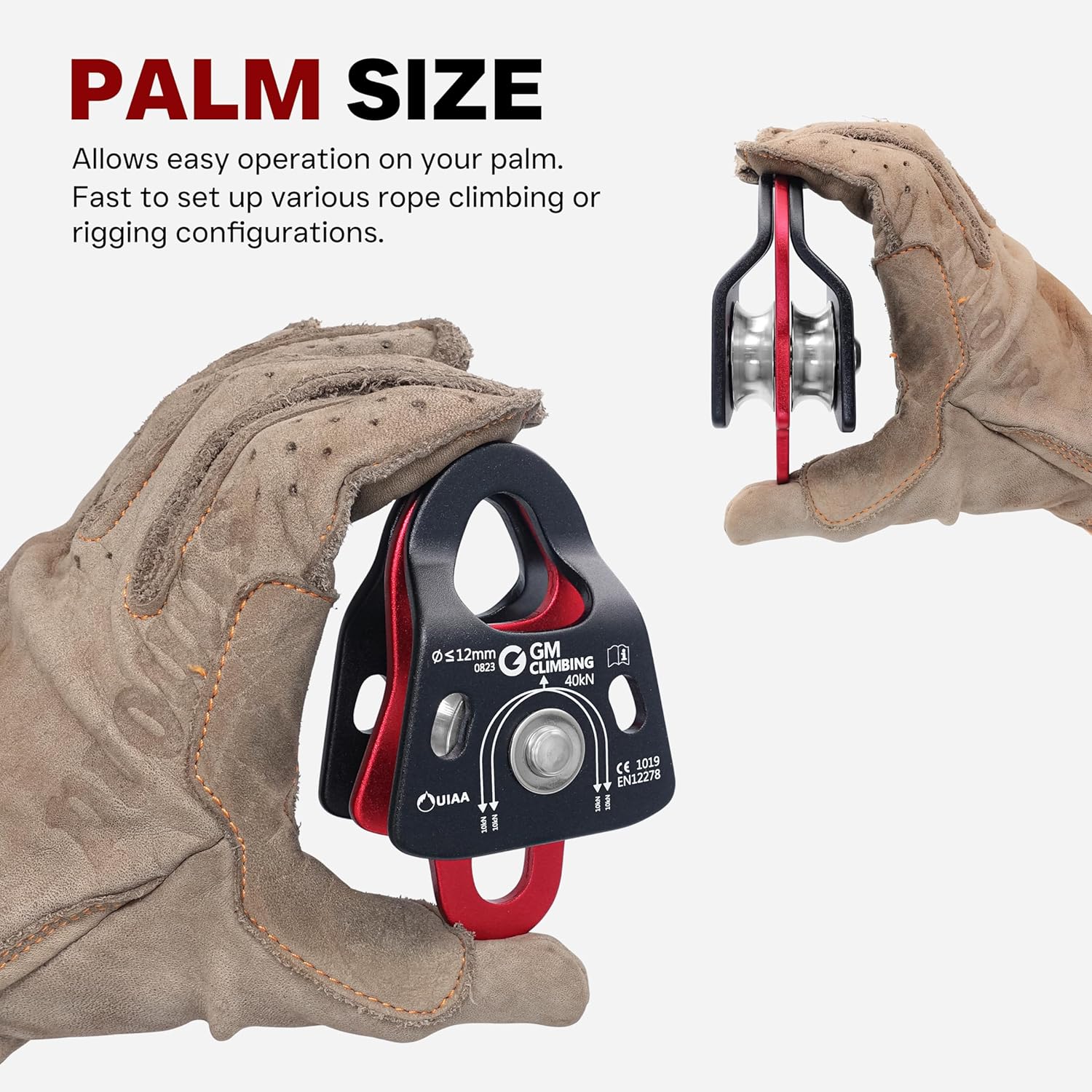

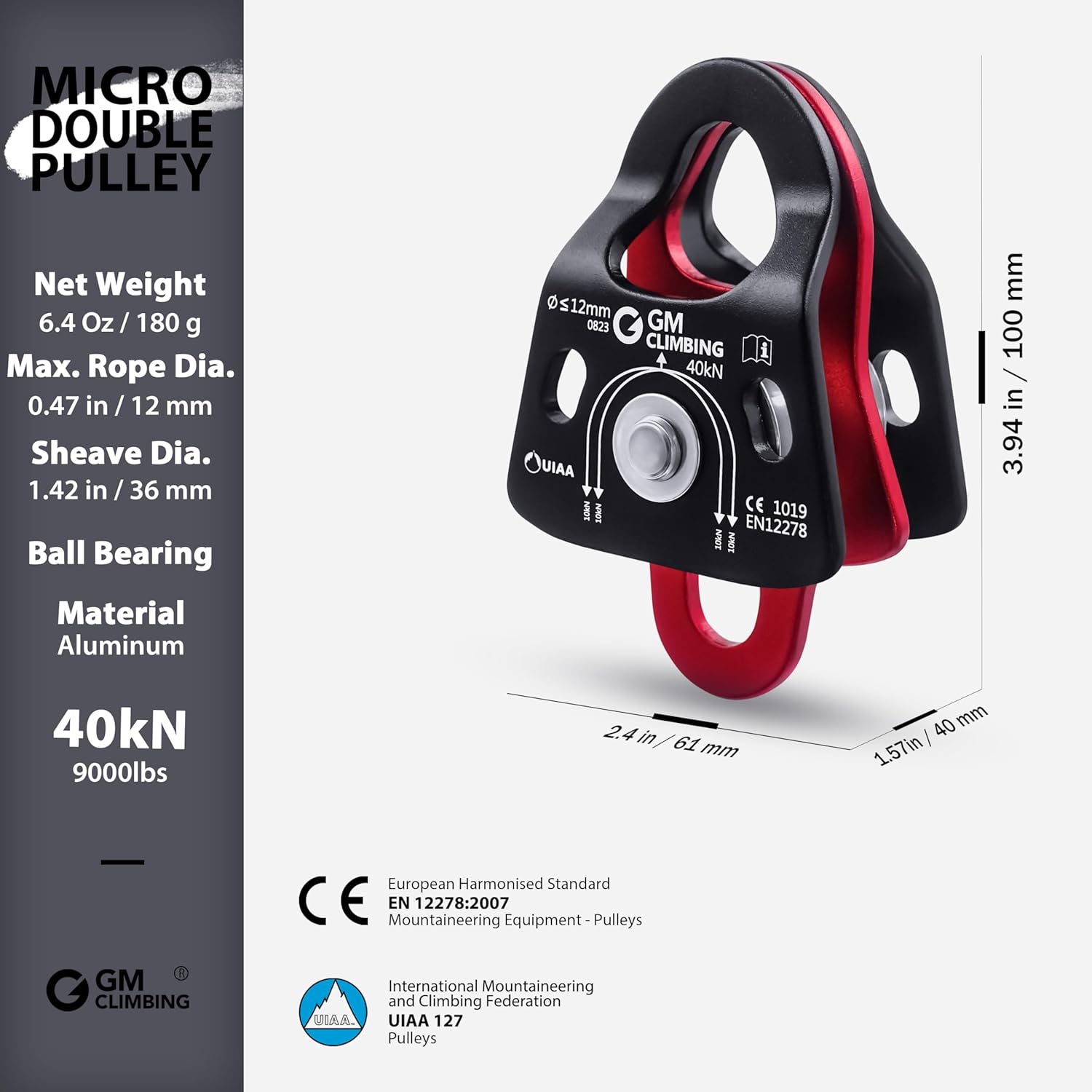

Micro Double Pulley
Dimension: 61 x 100 mm / 2.4 x 3.94 in
Sheave Dia.: 36 mm / 1.42 in
Weight: 180 g / 6.4 oz
Material: 7075 Aircraft Grade Aluminum, Ball Bearing
Max. Rope Compatibility: <12 mm / 0.47
ATTENTION: Never slide steel cable over the sheave of this pulley!
Breaking Strength: 40 kN = 2 x ( 10 kN + 10 kN )
Certificate(s): CE EN 12278, UIAA 127

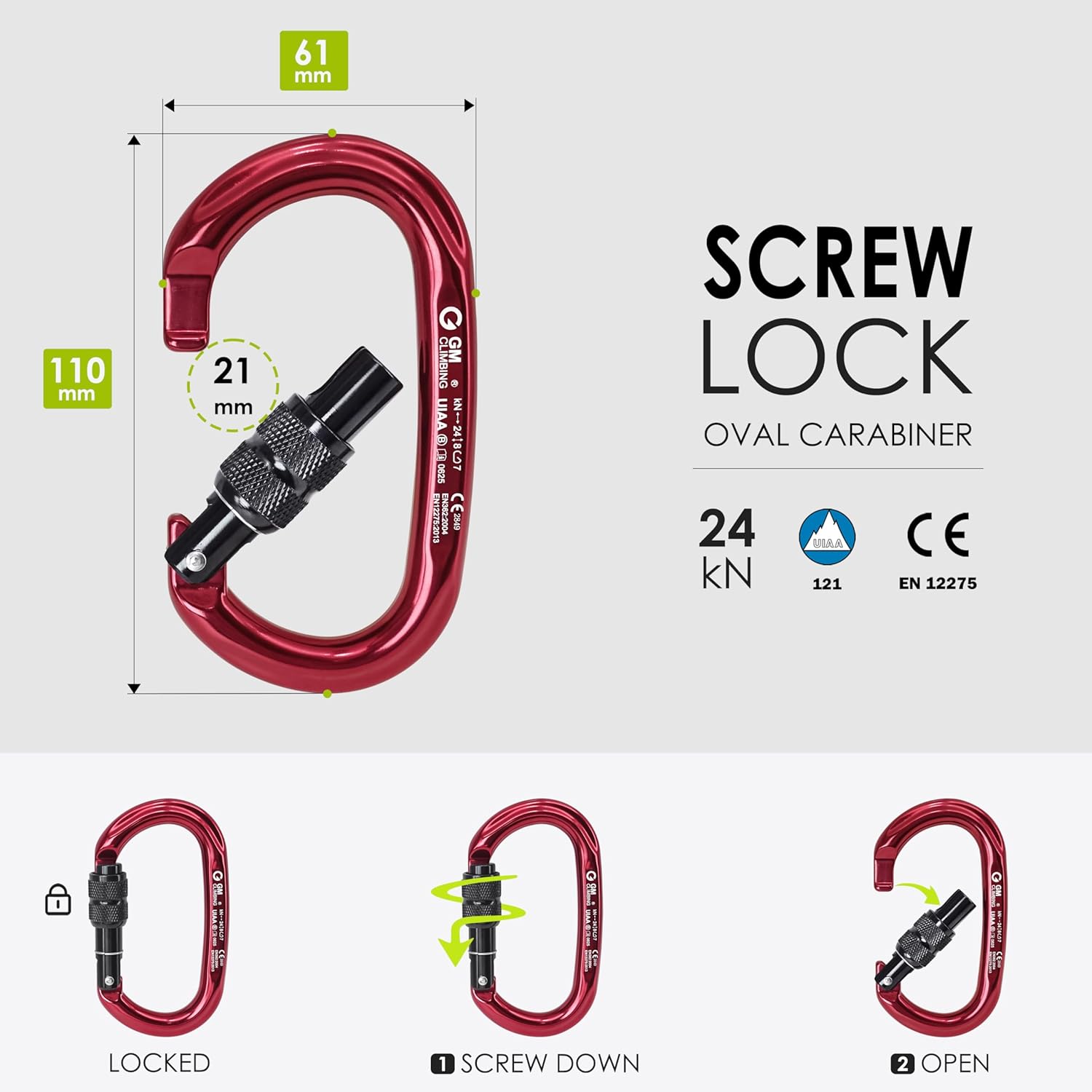

Screw Lock Oval Carabiner
Material: 7075 Aircraft-grade Aluminum alloy, Hot Forged
Breaking Strength: main axis: 24kN - minor axis: 8 kN - open gate: 7 kN
Gate opening (d): 21 mm / 0.8 in
Length: 110 mm / 4.3 in
Width: 61 mm / 2.4 in
Net weight: 77 g / 2.72 oz
Certification(s): CE EN 12275, UIAA

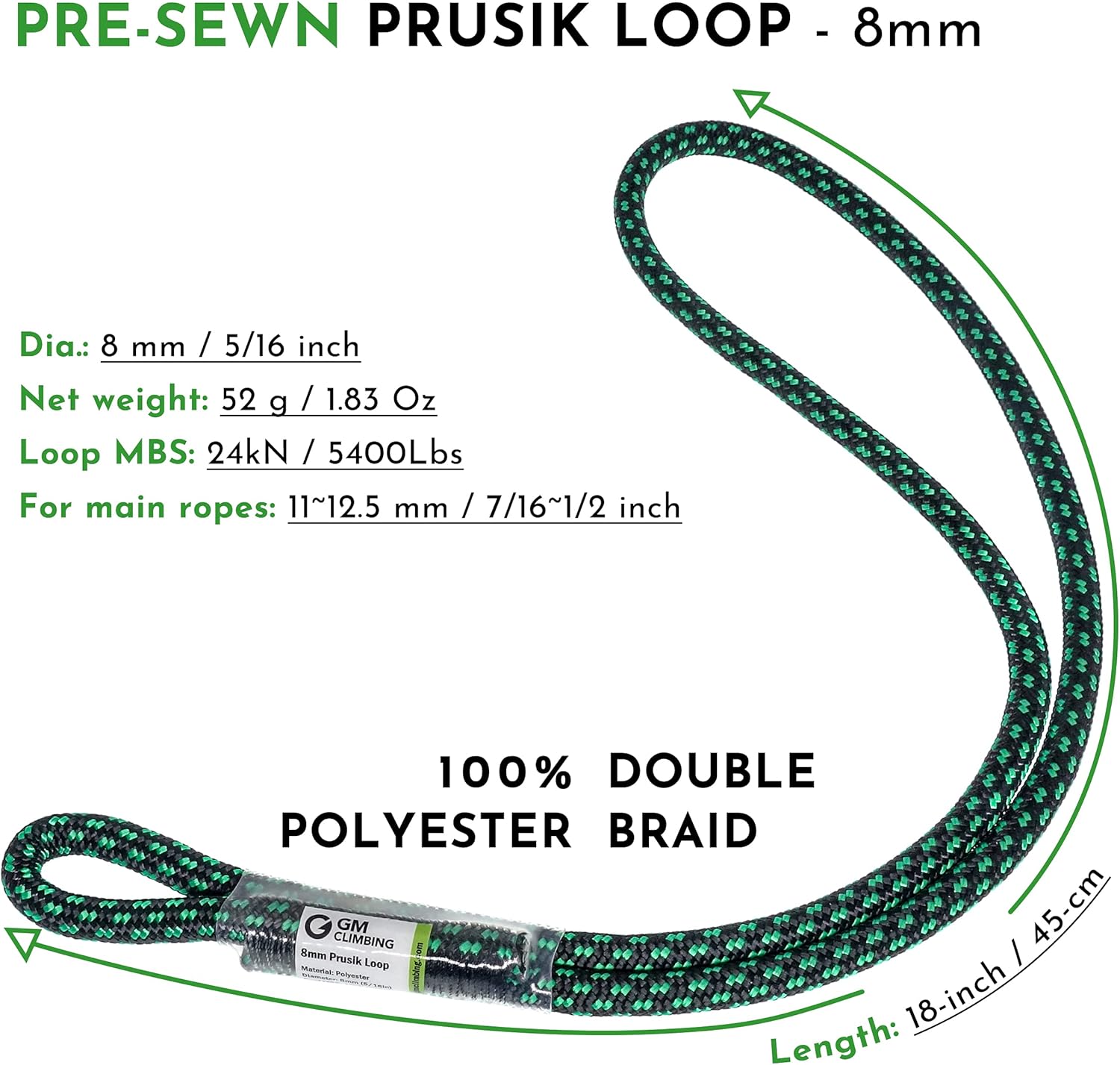

8 mm Prusik Loop
Length: 18 in, measured in flat pull
Diameter: 8 mm / 5/16 in
Material: Polyester
Loop MBS: 24 kN / 5400 Lbs
The 8mm accessory cord is CE EN 564 and UIAA certified.
Net weight: 52 g / 1.83 oz
Rope Compatibility: best for the main ropes of 11-12.5 mm / 7/16-1/2 inch

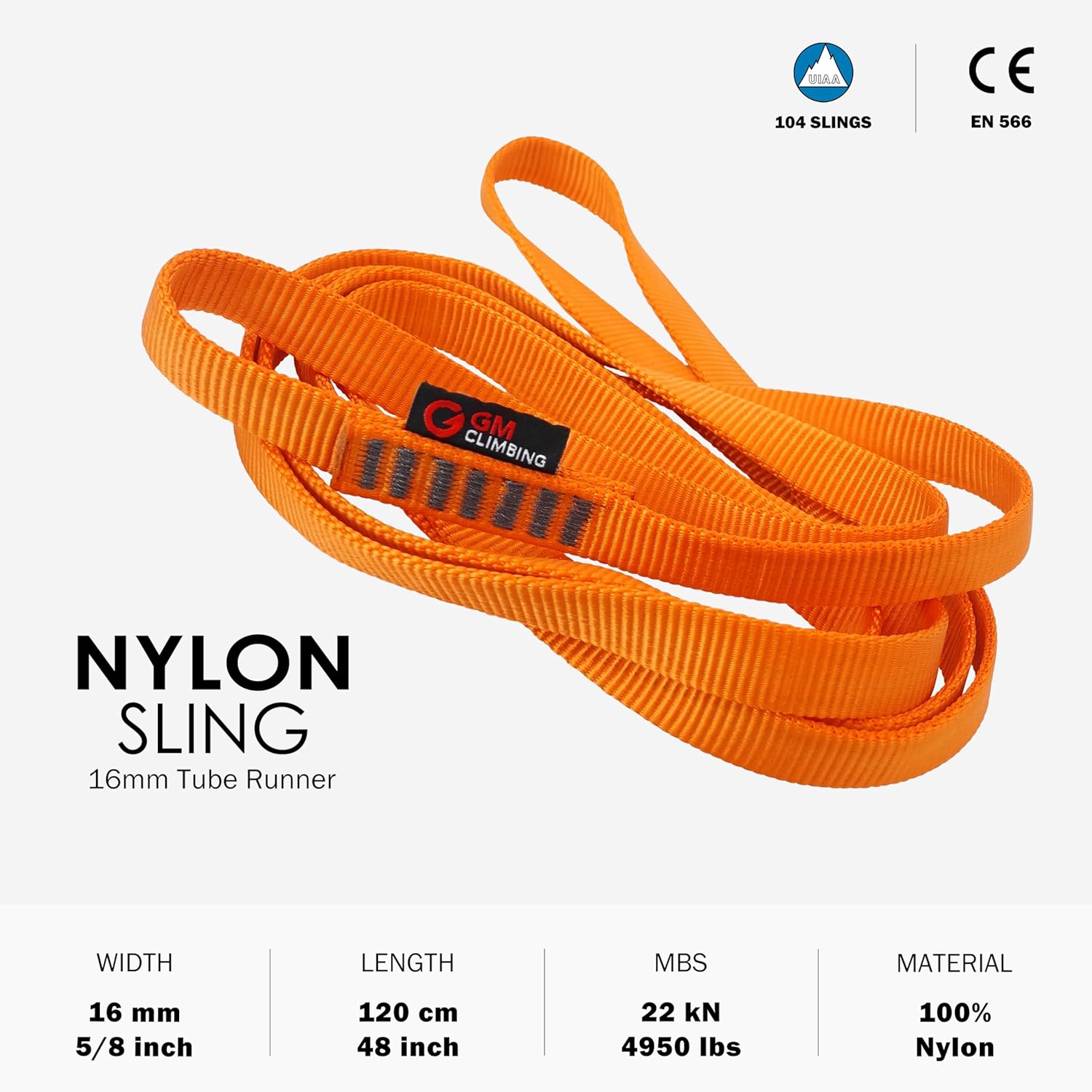

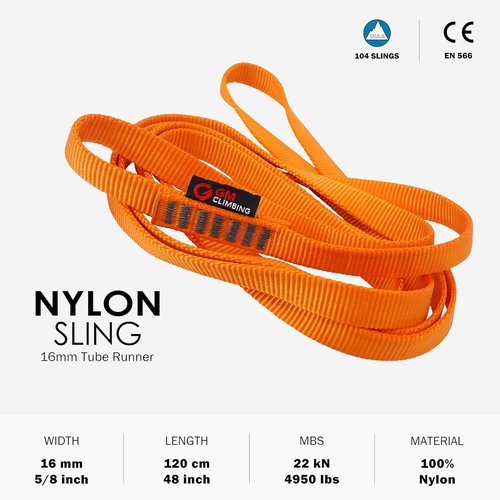

16 mm Nylon Sling
Assorted color: Orange or Gray
Length: 120 cm / 48 in
Width: 16 mm / 5/8 in
Material: Tube Nylon Webbing
Breaking Strength: 22 kN
Net weight: 79 g / 2.79 oz
Certification(s): CE EN 566, UIAA

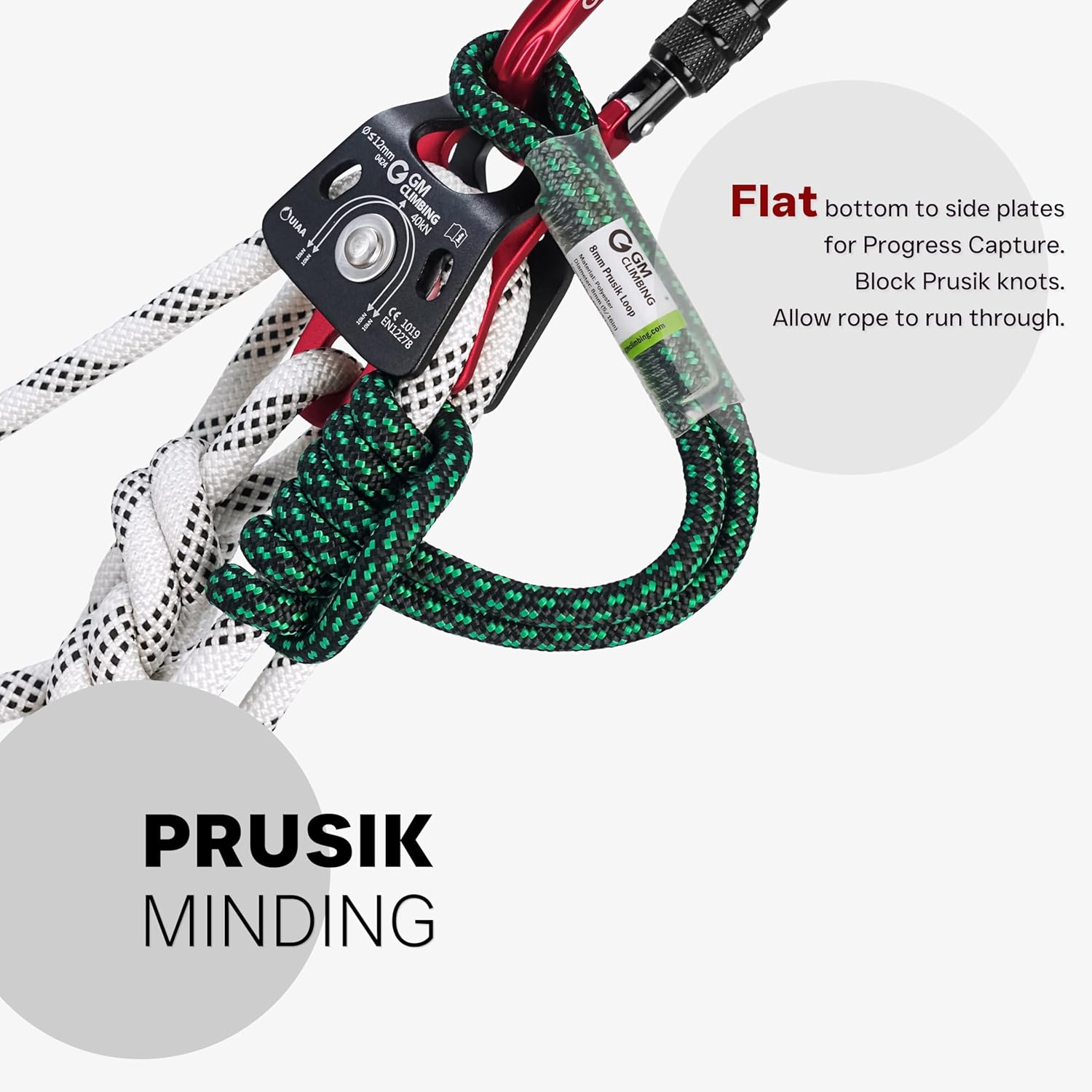

PROGRESS CAPTURE
- Micro Double Pulleys feature flat bottom on the side plates optimized for Prusik minding.
- Paired with a bound Prusik loop, they create progress capture to support a safe and controlled hauling system.
- Lock the load in place when tension is released, while allowing the passage of the main rope when tension is applied.

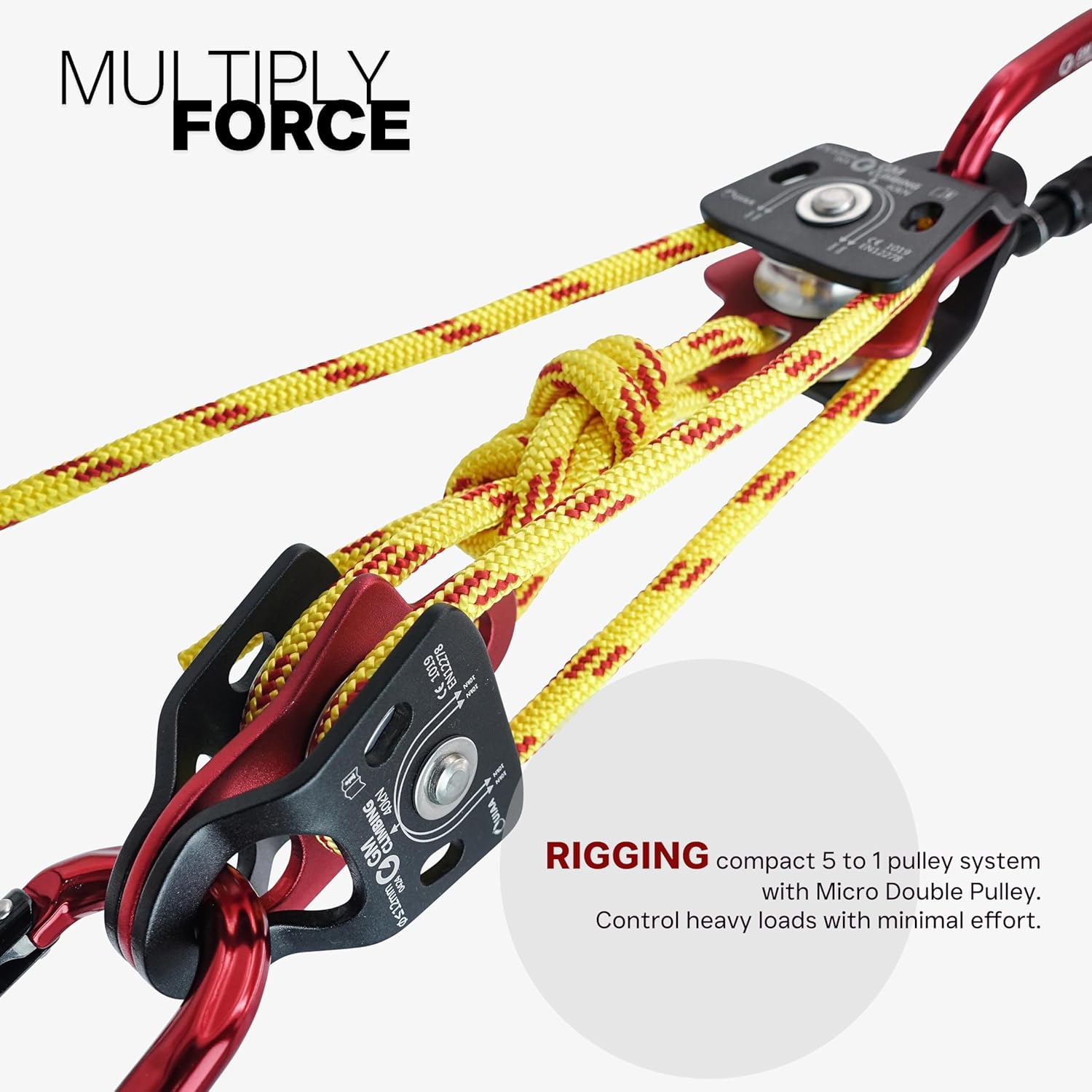

5:1 MECHANICAL ADVANTAGE
- Build 5:1 Mechanical Advantage System with this Micro Haul Kit, offering more than 100 rigging solutions, including pick-offs, hauling heavy loads, tensioning line systems, load releasing, rescuing stranded cars or boats, personal escape, crevasse rescue, and more.
- Provides reliable progress capture with 8mm Prusik loop.
- Delivers high-efficiency performance with sealed ball bearing pulleys.
- Configure a rigging system that is straightforward, efficient, compact, and multi-purpose.
EASY USE
- Compatible with ropes of 8-12 mm.
- With the moving side plates, there's no need to thread the rope through the pulleys from the far end.
- Simply rotate the side plates to expose the sheave wheels, allowing for quick rope installation and removal. Time-saving, particularly when modifying pulley configurations.

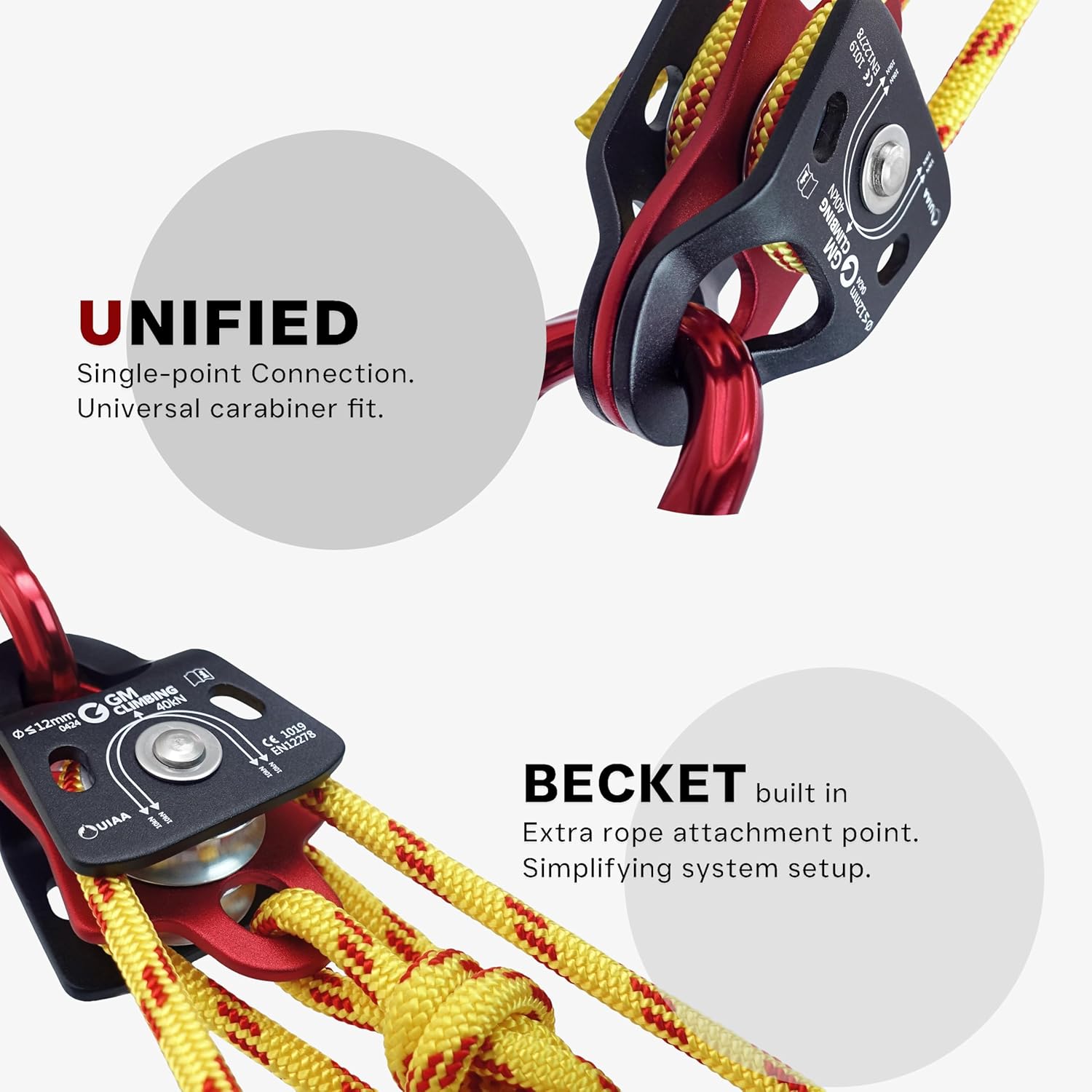

- The side plates close flush at the top, forming a single-point connection that offers universal compatibility with carabiners.
- Make a compact kit that takes up minimal space and can be easily tucked anywhere, gear bag, car trunk, or bike rack.
- Replace bulky block-and-tackle sets or heavy winches to pack efficiently and travel light.
- Streamline rigging for instant mechanical advantage anytime extra force is needed.
