98Cu.Ft / 4500psi PCP Refill Tank DOT Certified Carbon Fiber Cylinder Compressed Air System (Air Tank with Side Gauge Valve)

98Cu.Ft / 4500psi PCP Refill Tank DOT Certified Carbon Fiber Cylinder Compressed Air System (Air Tank with Side Gauge Valve)

$1,024.99 USD
$0.00 USD $1,024.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Capacity: 9 Liters / 98 Cubic feet / 550 cubic inch carbon fiber cylinder.
  • Certificate: DOT-SP-14621 certified. Inspection cycle: 3-Year, Service life:15-Year.

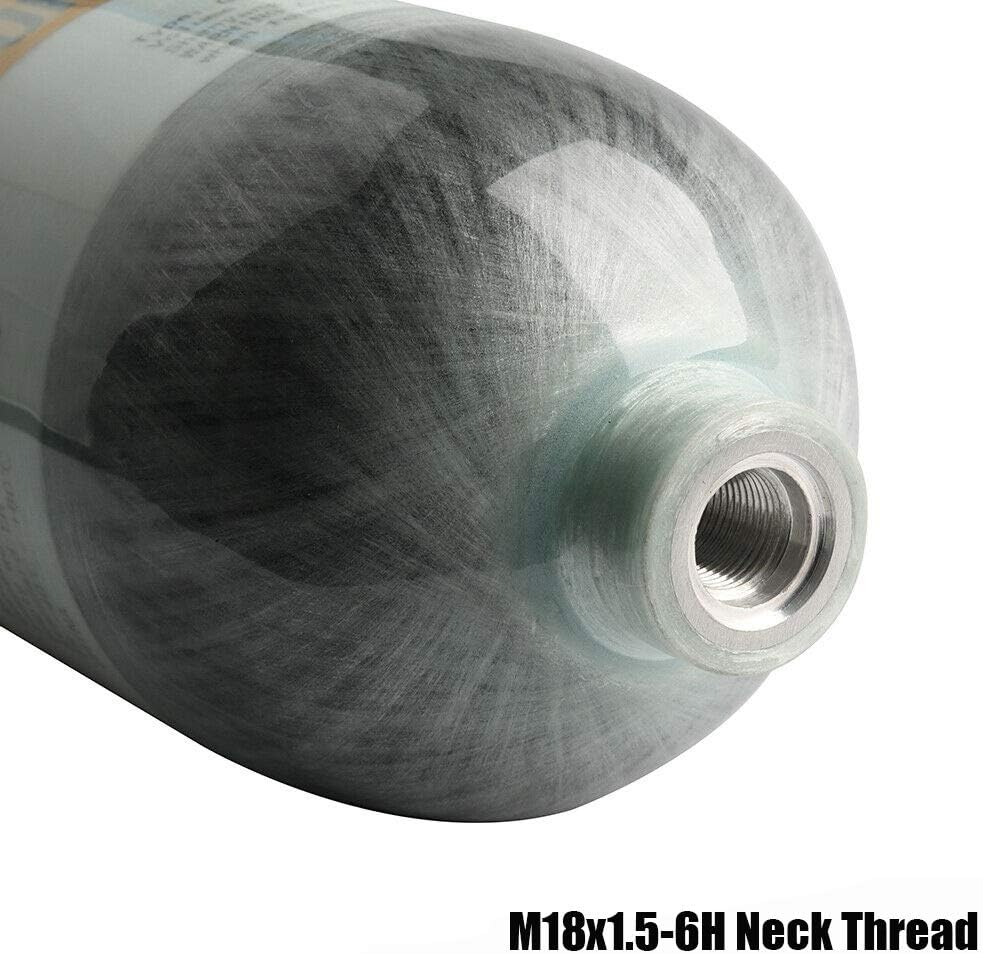

  • Working pressure: 30mpa / 300bar / 4500psi standard. The bottle mouth: M18x1.5-6H input thread.
  • Material: Imported AL-6061 aluminum alloy liner, carbon fiber and glass fiber winding bottle body.
  • This is DOT composite carbon fiber air tank with regualtor guage valve refill system, it is also can be for PCP airgun, paintball co2 HPA, scuba diving, and etcs.

GURLLEU Gas cylinders - GURLLEU produces portable gas cylinders through advanced technology. Compared with conventional respirators, we use aluminium or aluminium composite cylinders instead of steel ones, with weight reduction of 40%-70%, so they are more preferable for people with breathing problems.

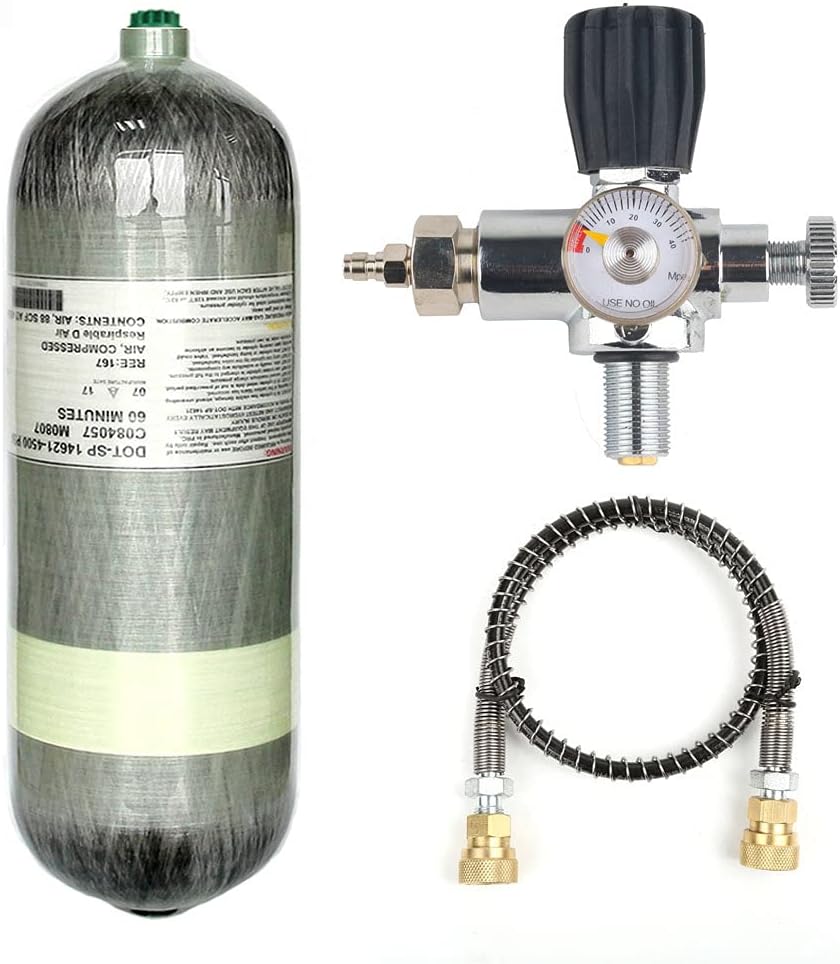

Charging System

Charging System Set

- 9 liter / 88 cubic feet capacity cylinder

- Integrated valve gauge for input / output

- High pressure filling hose with Foster quick disconnect

Charging System Set

Fill Station Assembly

Bottle Neck

Bottle Surface

Production Specifications

Pressure

Pressure Service

- Working Pressure: 30 Mpa / 4500 PSI

- Water Testing Pressure: 50 Mpa / 7500 PSI

- Burst Testing Pressure: 102 Mpa / 15300 PSI

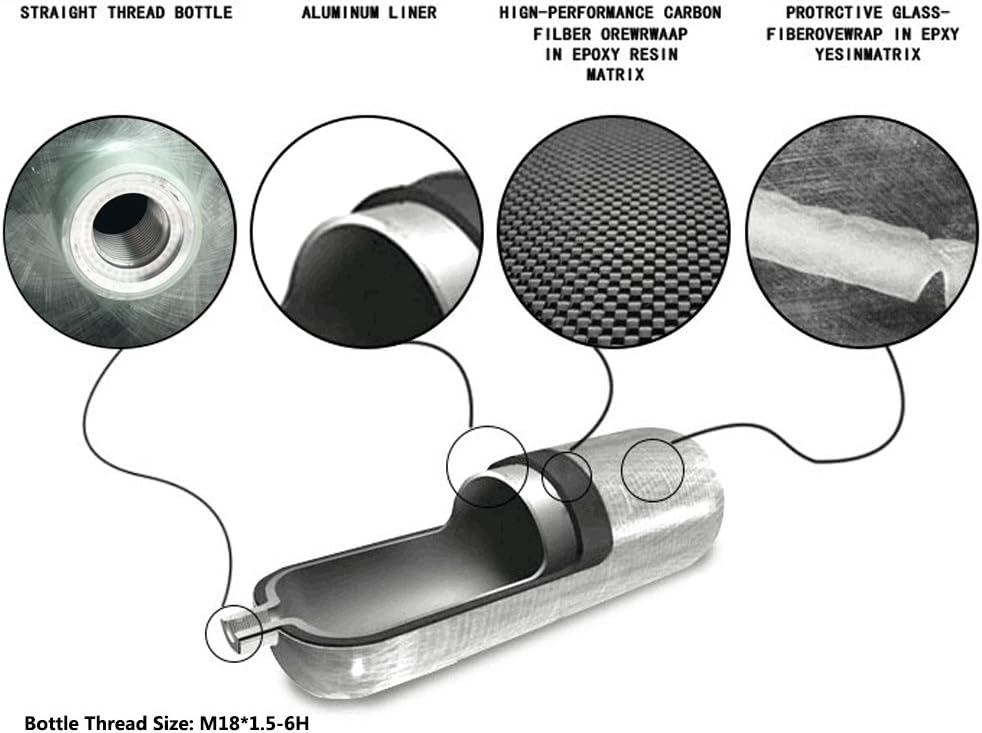

structure

Cylinder Structure

- Featured Imported AL-6061 lining

- Seamless design of filament winding

- Full-wrapped of carbon fiber and glass fiber

- Outside Diameter: 176mm / 6.9 inch, Length: 562mm / 22.1 inch

Valve set

Valve Structure

- High pressure gas cylinder valve in line with standard.

- Exquisite workmanship

- Military quality, safe and reliable

Compatible with standard

Standard

- DOT-SP-14621 standards

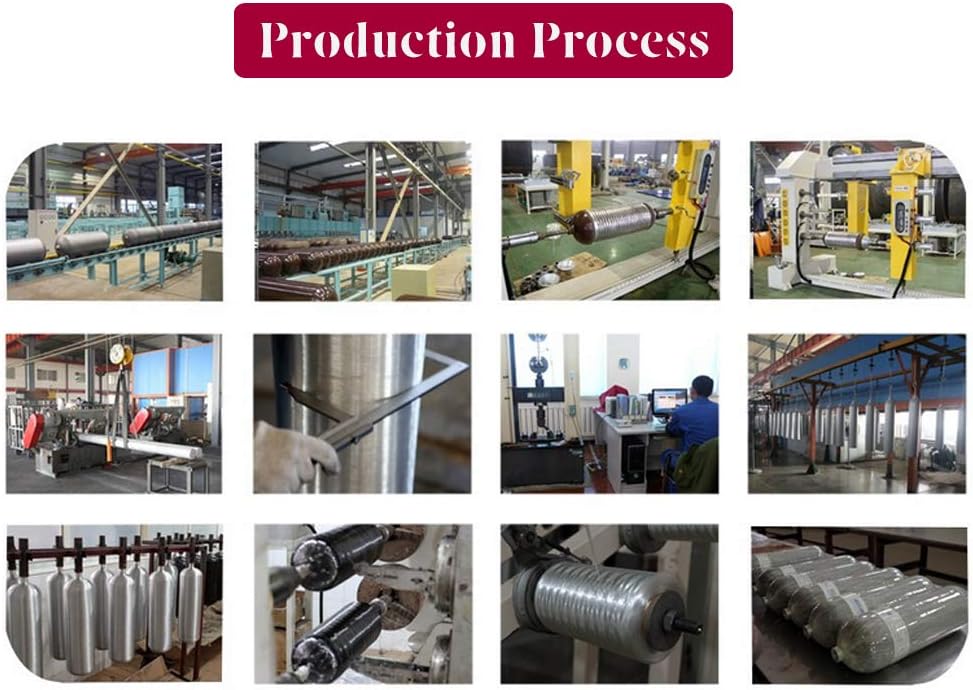

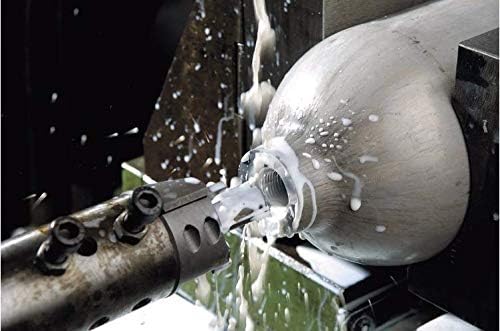

Production Process

Production Process

Advanced normative cyclic production

Standard production process cycle o ensure product quality and safety

Main Uses

Main Uses

Application

- It can be used in Loading gas, Emergency escape, Fire breathing, Underwater breathing, Lifesaving of ships, Clean energy, Snorkeling diving breathing, PCP rifle and Paintball filling, Medical care and Mine emergency.

- Widely for fire-fighting, chemical industry, shipping, laboratory, mine, pertroleum, warehouse, factory and metallurgy.
